Illumination panel for BMW 8 Series E31 850Ci (1992)

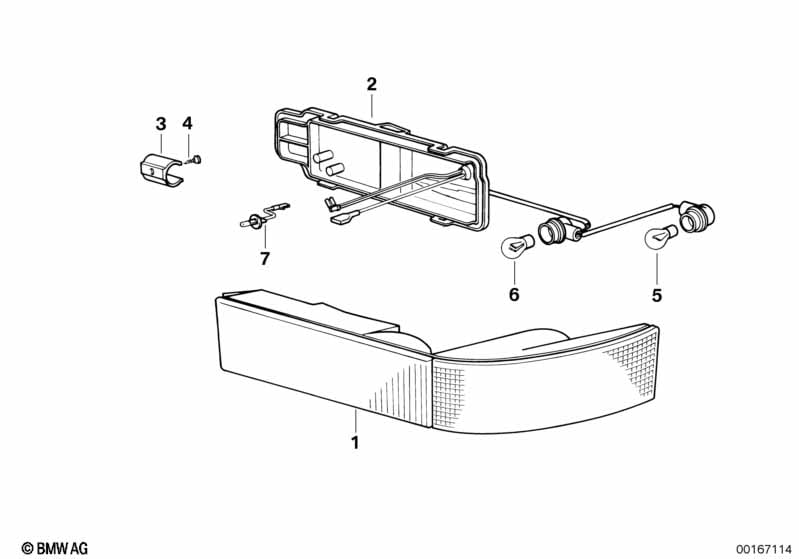

This Illumination panel technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Illuminated tape left | 1 | 63111383177 | $266.62 | Shop at ECS Tuning | |||||
| 01 | Illuminated tape right | 1 | 63111383178 | $266.62 | Shop at ECS Tuning | |||||
| Tie back unneeded wiring | ||||||||||
| 02 | Wiring left | 1 | 63118354387 | Shop at ECS Tuning | ||||||
| 02 | Wiring right | 1 | 63118354388 | ENDED | Shop at ECS Tuning | |||||
| 03 | Holder | 2 | 64531392090 | $9.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | 4X12MM | 2 | 64111386967 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 12V 21/5W | 2 | 07119905511 | $4.88 | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 21/5W | 2 | 63217160793 | $3.92 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 55W H1 | X | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 07 | Bulb H1 Plus | 12V 55W | X | 07500003923 | $8.93 | ENDED | Shop at ECS Tuning | |||
