Rear light for BMW 8 Series E31 850Ci (1993)

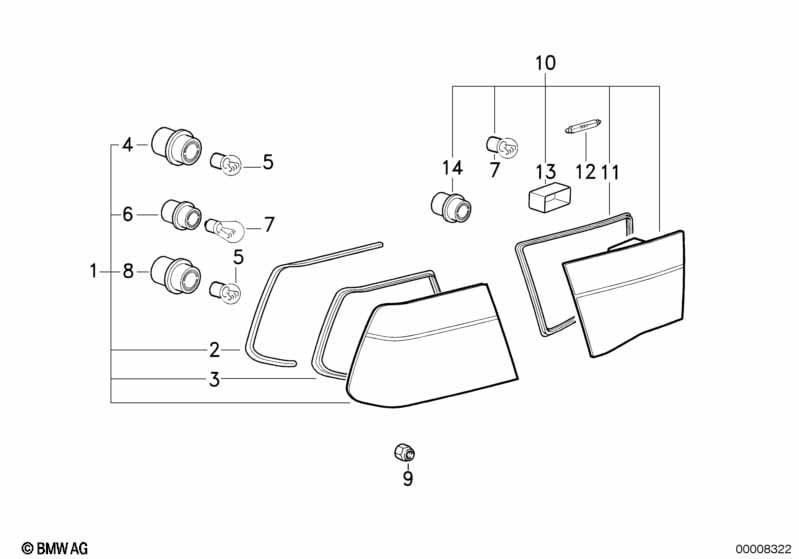

This Rear light technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 11/1990 | 63218354263 | $265.65 | Shop at ECS Tuning | ||||
| 01 | Rear light in the side panel, right | 1 | 11/1990 | 63218354264 | $265.65 | Shop at ECS Tuning | ||||
| 02 | Gasket | 2 | 63211389706 | $3.18 | ENDED | Shop at ECS Tuning | ||||
| 03 | Gasket | 2 | 63211383098 | $7.23 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 2 | 63211379395 | $9.05 | Shop at ECS Tuning | |||||
| 05 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Bulb socket | 2 | 63211379397 | $9.05 | Shop at ECS Tuning | |||||
| 07 | Bulb | 12V 5W | X | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 10W | 4 | 07119905337 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 10W | X | 07119905337 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Bulb socket | 2 | 63211379399 | $9.05 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M5-8-ZNNIV SI | X | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Rear light in trunk lid, left | 1 | 63211383047 | $254.45 | Shop at ECS Tuning | |||||
| 10 | Rear light in trunk lid, right | 1 | 63211383048 | $254.45 | Shop at ECS Tuning | |||||
| 11 | Tail light gasket | 2 | 63211387367 | $13.80 | Shop at ECS Tuning | |||||
| 12 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 13 | Luggage compartment light/Trunk lid | 2 | 63311389613 | $11.28 | Shop at ECS Tuning | |||||
| 14 | Bulb socket | 6 | 63211383099 | $9.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
