Single parts f ellipsoidal headlight for BMW 3 Series E30 M3 (1990)

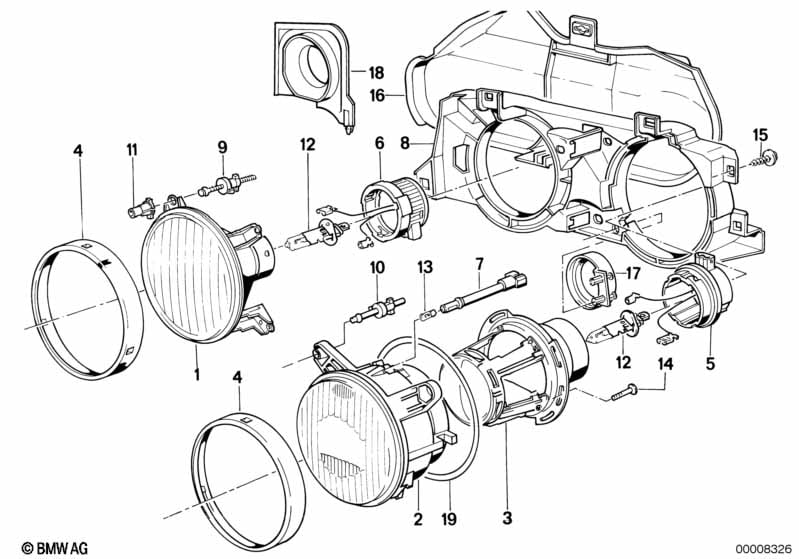

This Single parts f ellipsoidal headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.

Single parts f ellipsoidal headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 High beam insert left HELLA 1 09/1987 63121386407 $105.05 Shop at ECS Tuning
01 High beam insert right HELLA 1 09/1987 63121386408 $105.05 Shop at ECS Tuning
01 Left yellow high beam insert 1 09/1987 63121386409 ENDED Shop at ECS Tuning
01 High beam insert right yellow 1 09/1987 63121386410 ENDED Shop at ECS Tuning
02 Lamp lens left HELLA 1 09/1988 63121386715 $95.82 Shop at ECS Tuning
02 Lamp lens right HELLA 1 09/1988 63121386716 $97.32 Shop at ECS Tuning
02 Left yellow lamp lens HELLA 1 09/1988 63121386721 Shop at ECS Tuning
02 Right yellow lamp lens HELLA 1 09/1988 63121386722 Shop at ECS Tuning
02 Lamp lens left BOSCH 1 09/1988 63121386757 Shop at ECS Tuning
02 Lamp lens right BOSCH 1 09/1988 63121386758 Shop at ECS Tuning
03 Reflector BOSCH 2 09/1988 63121386807 Shop at ECS Tuning
03 Reflector HELLA 2 09/1988 63121390270 $156.57 Shop at ECS Tuning
04 Glass holding frame 4 09/1987 63121373529 $28.83 Shop at ECS Tuning
For vehicles with
Headlight cleaning system
=Yes
04 Glass holding frame high beam left 2 09/1987 63121370891 $40.73 Shop at ECS Tuning
04 Glass holding frame high beam right 2 09/1987 63121370892 $40.73 Shop at ECS Tuning
04 Glass holding frame low beam left 2 09/1987 63121385593 $40.73 ENDED Shop at ECS Tuning
04 Glass holding frame low beam right 2 09/1987 63121385594 $40.73 ENDED Shop at ECS Tuning
05 Covering cap HELLA 2 09/1987 63121378333 $25.97 Shop at ECS Tuning
05 Covering cap BOSCH 2 09/1987 63121391940 $25.97 Shop at ECS Tuning
06 Covering cap 2 09/1987 63128357401 $37.87 Shop at ECS Tuning
06 Covering cap 2 09/1987 63128357402 $21.20 ENDED Shop at ECS Tuning
07 Bulb socket 2 09/1987 63121385603 $14.55 Shop at ECS Tuning
08 Supporting frame left 1 09/1987 63121385601 $53.10 Shop at ECS Tuning
08 Supporting frame right 1 09/1987 63121385602 $53.10 Shop at ECS Tuning

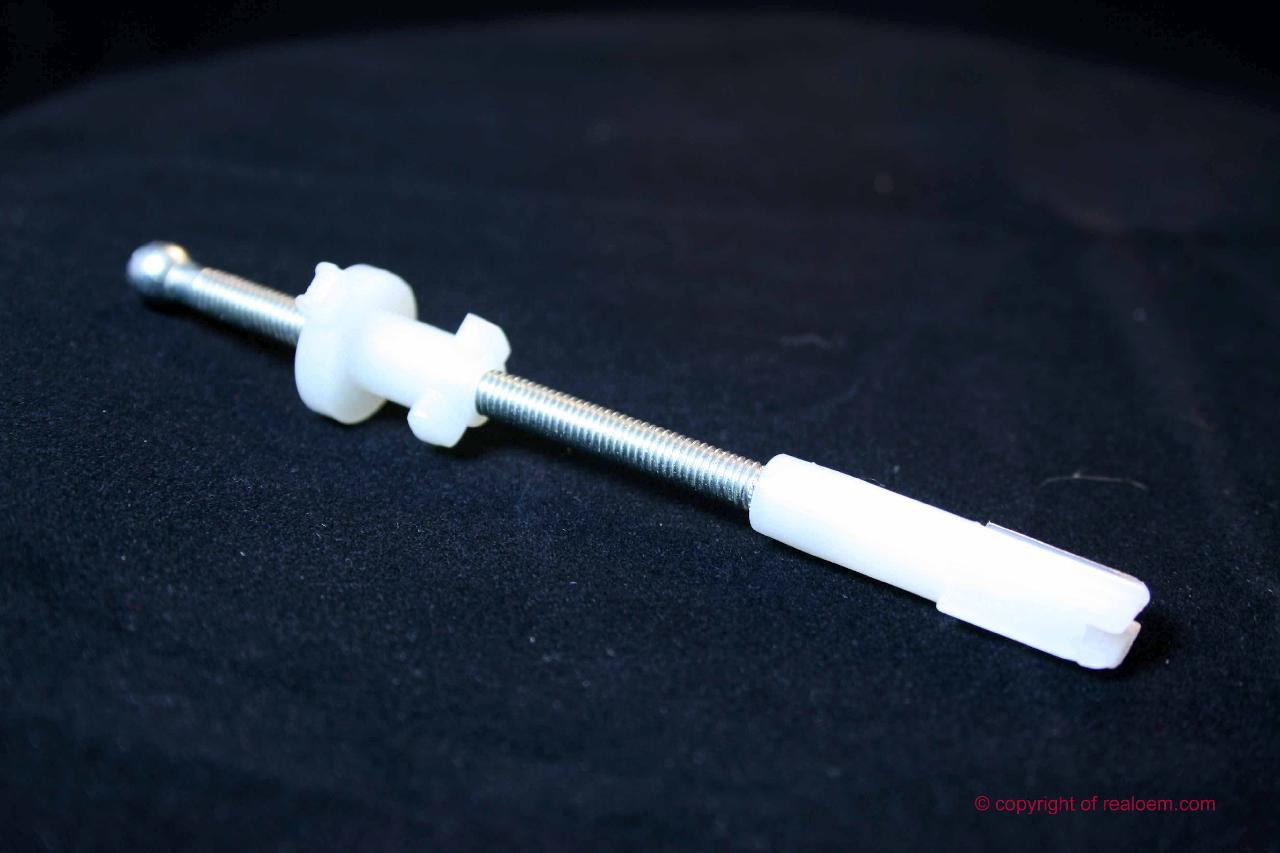

09 Adjusting screw 8 09/1987 63121385397 $10.92 Shop at ECS Tuning
10 Intermediate piece 4 09/1989 63121394252 $4.88 Shop at ECS Tuning

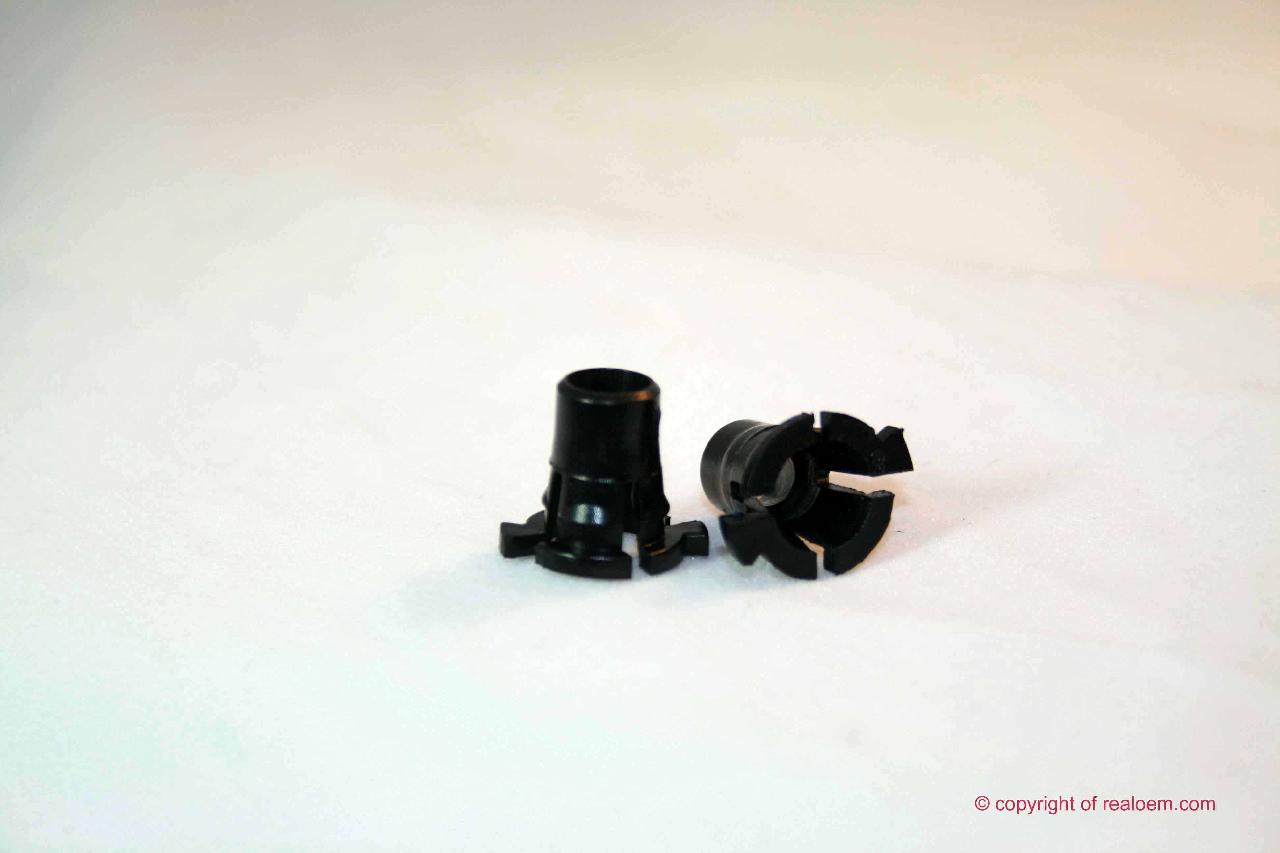

11 Black rubber bushing X 09/1987 63121378369 $2.70 Shop at ECS Tuning
For vehicles with
Headlight aim control
=Yes
11 Joint sleeve X 09/1987 63121386616 $3.05 Shop at ECS Tuning
12 Bulb 12V 55W H1 X 09/1987 63217160777 $11.68 Shop at ECS Tuning
12 Bulb H1 Plus 12V 55W X 09/1987 07500003923 $8.93 ENDED Shop at ECS Tuning
13 Longlife bulb 5W 2 09/1987 63217160797 $1.96 Shop at ECS Tuning
14 Fillister head screw M4X22 6 09/1987 63121379998 $2.40 Shop at ECS Tuning
15 Sheet metal screw 7 09/1987 63121352070 $0.62 Shop at ECS Tuning
16 Covering right 1 09/1987 51711965252 $8.73 Shop at ECS Tuning
For vehicles with
Headlight aim control
=Yes
17 Adapter 2 09/1987 63121385604 $7.83 Shop at ECS Tuning
19 Gasket ring HELLA 2 63121386641 $7.52 Shop at ECS Tuning
19 Gasket ring BOSCH 2 63121386650 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
