Single components for headlight for BMW 5 Series E28 520i (1987)

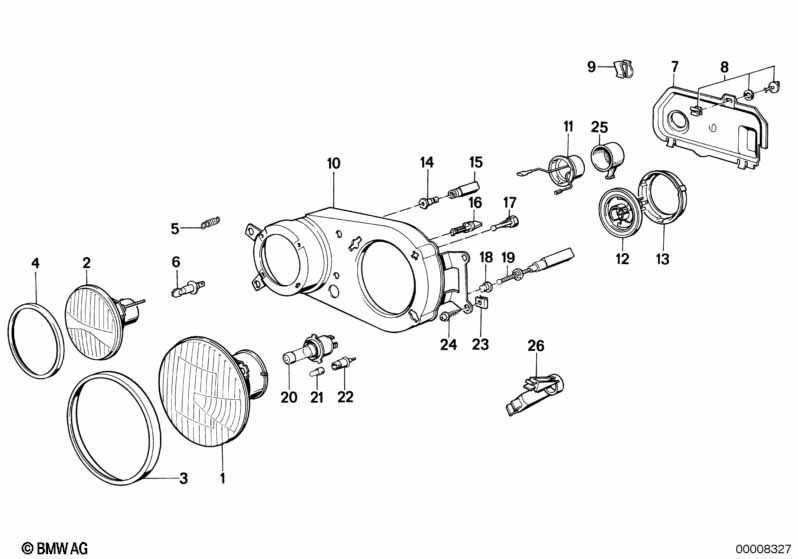

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.

Single components for headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Low beam insert left 1 63121369855 $105.46 Shop at ECS Tuning
01 Low beam insert right 1 63121369856 $105.46 Shop at ECS Tuning
02 High beam insert HELLA 2 63121369842 $105.05 Shop at ECS Tuning
For vehicles with
National version france
L813A=Yes
02 High beam insert HELLA 2 63121369844 $61.94 ENDED Shop at ECS Tuning
03 Glass holding frame 2 63121362046 $45.28 Shop at ECS Tuning
For vehicles with
Headlight cleaning system
=Yes
03 Glass holding frame left 1 63121369107 $53.63 Shop at ECS Tuning
03 Glass holding frame right 1 63121369108 $53.63 Shop at ECS Tuning
04 Glass holding frame 2 63121369840 $52.50 ENDED Shop at ECS Tuning
For vehicles with
Headlight cleaning system
=Yes
04 Glass holding frame left 1 63121369109 $47.47 Shop at ECS Tuning
04 Glass holding frame right 1 63121369112 $47.47 Shop at ECS Tuning
05 Tension spring 2 63121362037 $3.00 Shop at ECS Tuning
06 Bulb 12V 55W H1 X 63217160777 $11.68 Shop at ECS Tuning
07 Covering right 1 51711917964 $14.43 Shop at ECS Tuning
07 Covering left 1 51711917965 $19.14 Shop at ECS Tuning
08 Lock 2 51711857441 $3.63 ENDED Shop at ECS Tuning
10 Supporting frame left 1 63121367093 $91.83 ENDED Shop at ECS Tuning
10 Supporting frame right 1 63121367094 $91.83 ENDED Shop at ECS Tuning
11 Covering cap HELLA 2 63121372732 $26.55 ENDED Shop at ECS Tuning
12 Covering cap 2 63121372733 $30.37 ENDED, +core Shop at ECS Tuning
13 Clamp ring 2 63121364799 $7.42 ENDED Shop at ECS Tuning
14 Bush 4 63121364940 $4.97 Shop at ECS Tuning
15 Adjusting nut 4 63121362049 $2.54 Shop at ECS Tuning
16 Intermediate piece 2 63121362036 $4.42 Shop at ECS Tuning
17 Intermediate piece 2 63121369858 $4.42 Shop at ECS Tuning
18 Joint sleeve 6 63121369833 $2.34 Shop at ECS Tuning
19 Adjusting screw 4 63121369857 $9.73 Shop at ECS Tuning
20 Bulb H4 2 63121354619 $13.63 Shop at ECS Tuning
20 Bulb yellow H4 2 63121356105 $35.10 Shop at ECS Tuning
21 Bulb 12V 4W X 07509063576 $1.58 Shop at ECS Tuning
22 Bulb socket 2 63121362871 $5.17 Shop at ECS Tuning
23 Body nut ST6,3-1-ZNS3 8 07129904231 Shop at ECS Tuning
24 Sheet metal screw 8 63121352070 $0.62 Shop at ECS Tuning
25 Covering cap 4 61131372314 $8.73 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
