Headlight aim control for BMW 5 Series E28 535i (1987)

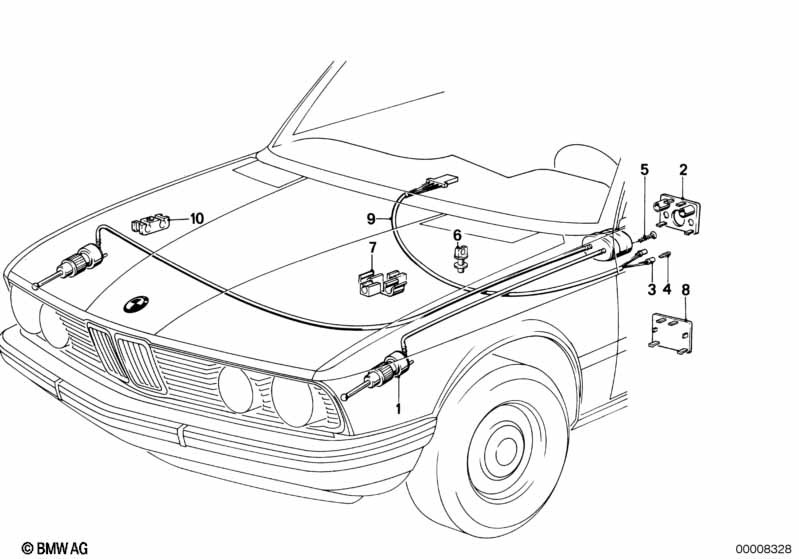

This Headlight aim control technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlight aim control | 1 | 63121386148 | $196.36 | Shop at ECS Tuning | |||||
| 02 | Plate | 1 | 63121372883 | $13.63 | Shop at ECS Tuning | |||||
| 03 | Bulb socket | 2 | 64111366170 | $2.37 | Shop at ECS Tuning | |||||
| 04 | Bulb | 0,36 WATT | 2 | 61138360844 | $1.62 | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 05 | Csk.lenshead screw | ST4,8X13 | 2 | 07119902236 | $0.16 | ENDED | Shop at ECS Tuning | |||
| 06 | Holder | 2 | 63121368528 | $2.25 | Shop at ECS Tuning | |||||
| 07 | Holder | 3 | 63121368529 | $2.07 | Shop at ECS Tuning | |||||
| 08 | Plug | 1 | 63121367925 | $53.79 | Shop at ECS Tuning | |||||
| 09 | Wiring light regulator | 1 | 61121370534 | $13.73 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamping | 1 | 16121107928 | $4.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
