Single components for headlight for BMW 5 Series E28 528e (1987)

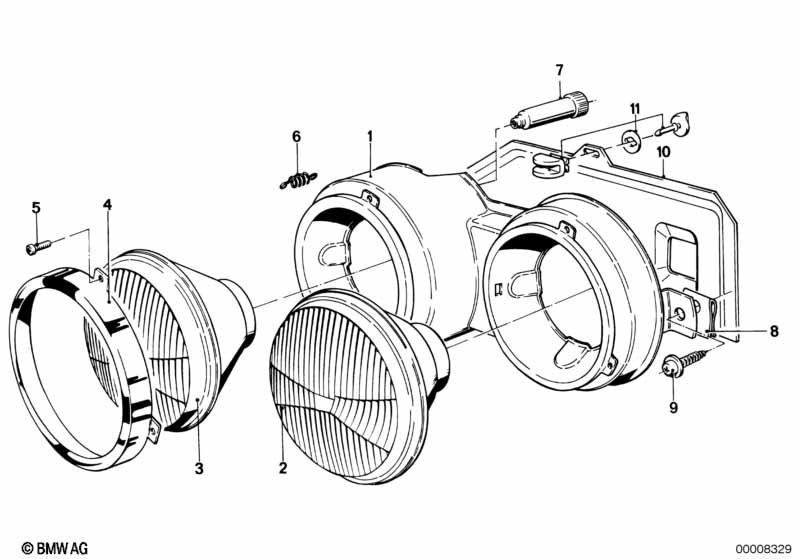

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting frame left | 1 | 63121367515 | $215.45 | Shop at ECS Tuning | |||||
| 01 | Supporting frame right | 1 | 63121367516 | $215.45 | ENDED | Shop at ECS Tuning | ||||
| 02 | Low beam insert (sealed beam) | 2 | 63121366539 | ENDED | Shop at ECS Tuning | |||||
| 03 | High beam insert (sealed beam) | 2 | 63121373060 | $25.82 | ENDED | Shop at ECS Tuning | ||||
| 04 | Glass holding frame | 4 | 63121362477 | $32.43 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | B3,9X8 | X | 63121359777 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Tension spring | 4 | 63121359719 | $2.68 | Shop at ECS Tuning | |||||
| 07 | Adjusting nut | 8 | 63121354449 | $1.61 | ENDED | Shop at ECS Tuning | ||||
| 08 | Body nut | ST6,3-1-ZNS3 | 8 | 07129904231 | Shop at ECS Tuning | |||||
| 09 | Sheet metal screw | 8 | 63121352070 | $0.62 | Shop at ECS Tuning | |||||
| 10 | Covering right | 1 | 51711917964 | $14.43 | Shop at ECS Tuning | |||||
| 10 | Covering left | 1 | 51711917965 | $19.14 | Shop at ECS Tuning | |||||
| 11 | Lock | 2 | 51711857441 | $3.63 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
