Headlight for BMW 5 Series E28 525e (1987)

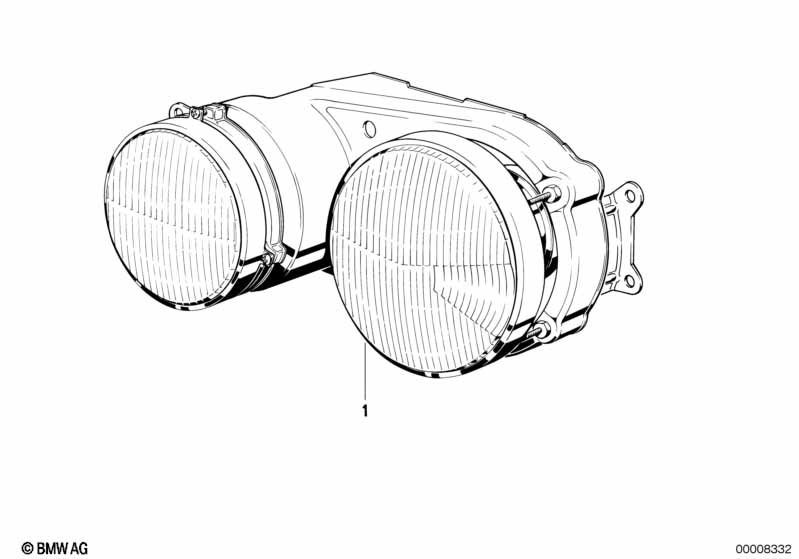

This Headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Twin headlight left | 1 | 63121367083 | $325.87 | ENDED | Shop at ECS Tuning | ||||
| 01 | Twin headlight right | 1 | 63121367084 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 01 | Left yellow twin headlight | 1 | 63121367077 | ENDED | Shop at ECS Tuning | |||||
| 01 | Right yellow twin headlight | 1 | 63121367078 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version france and Headlight aim control |
L813A=Yes =Yes |
|||||||||
| 01 | Left yellow twin headlight | 1 | 63121367077 | ENDED | Shop at ECS Tuning | |||||
| 01 | Right yellow twin headlight | 1 | 63121367078 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
