Single parts f conventional headlight for BMW 3 Series E30 318i (1987)

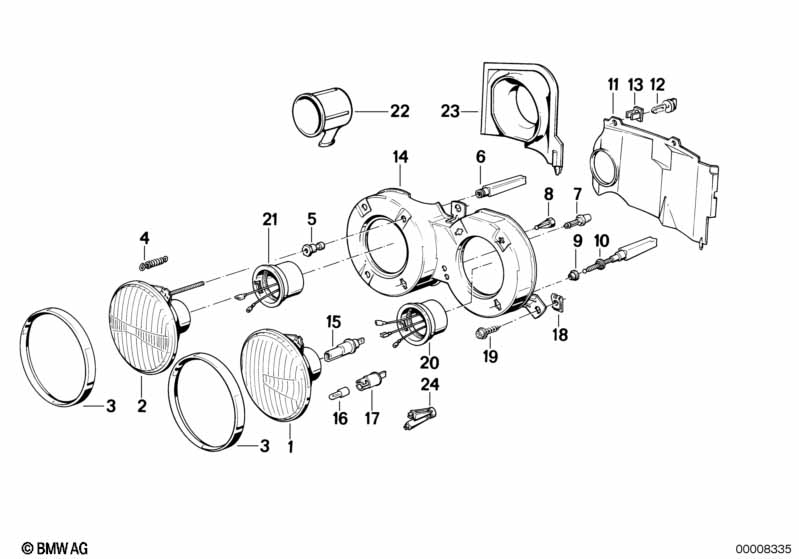

This Single parts f conventional headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Low beam stage reflector insert left | HELLA,GELB | 1 | 63121370909 | $91.51 | Shop at ECS Tuning | ||||
| 01 | Low beam stage reflector insert right | HELLA,GELB | 1 | 63121370910 | $91.51 | ENDED | Shop at ECS Tuning | |||
| 01 | Low beam stage reflector insert left | BOSCH | 1 | 63121373505 | $181.14 | Shop at ECS Tuning | ||||
| 01 | Low beam stage reflector insert right | BOSCH | 1 | 63121373506 | $181.14 | ENDED | Shop at ECS Tuning | |||
| Reflektor ohne Gewindestange, Gewindestange mit Werkstattmitteln nachbauen. |
||||||||||
| 01 | Low beam stage reflector insert left | HELLA | 1 | 63121368861 | $181.14 | Shop at ECS Tuning | ||||
| 01 | Low beam stage reflector insert right | HELLA | 1 | 63121368862 | $181.14 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | High beam insert | BOSCH | 1 | 63121373511 | $171.57 | ENDED | Shop at ECS Tuning | |||
| 02 | High beam insert yellow | HELLA | 1 | 63121374831 | $105.05 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | High beam insert yellow | HELLA | 1 | 63121370914 | $105.05 | ENDED | Shop at ECS Tuning | |||
| 02 | High beam insert | BOSCH | 1 | 63121373512 | $88.16 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE Reflektor ohne Gewindestange, Gewindestange mit Werkstattmitteln nachbauen. |
||||||||||
| 02 | High beam insert | HELLA | 1 | 63121370904 | $105.05 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE Reflektor ohne Gewindestange, Gewindestange mit Werkstattmitteln nachbauen. |
||||||||||
| 02 | High beam insert | HELLA | 1 | 63121369842 | $105.05 | Shop at ECS Tuning | ||||
| 03 | Glass holding frame | 4 | 63121373529 | $28.83 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 03 | Glass holding frame low beam left | 1 | 63121370889 | $33.27 | ENDED | Shop at ECS Tuning | ||||
| 03 | Glass holding frame low beam right | 1 | 63121370890 | $33.27 | Shop at ECS Tuning | |||||
| 03 | Glass holding frame high beam left | 1 | 63121370891 | $40.73 | Shop at ECS Tuning | |||||
| 03 | Glass holding frame high beam right | 1 | 63121370892 | $40.73 | Shop at ECS Tuning | |||||
| 04 | Tension spring | 2 | 63121362037 | $3.00 | Shop at ECS Tuning | |||||
| 05 | Bush | 4 | 63121364940 | $4.97 | Shop at ECS Tuning | |||||
| 06 | Adjusting screw | 4 | 63121373571 | $7.30 | Shop at ECS Tuning | |||||
| 07 | Intermediate piece | 2 | 63121362036 | $4.42 | Shop at ECS Tuning | |||||
| 08 | Intermediate piece | 2 | 63121369858 | $4.42 | Shop at ECS Tuning | |||||
| 09 | Joint sleeve | 4 | 63121369833 | $2.34 | Shop at ECS Tuning | |||||
| 10 | Adjusting screw | 4 | 63121370857 | $9.92 | Shop at ECS Tuning | |||||
| 11 | Covering left | 1 | 51711916083 | $8.45 | ENDED | Shop at ECS Tuning | ||||
| 11 | Covering left | 1 | 51711965243 | $8.73 | Shop at ECS Tuning | |||||
| 11 | Covering right | 1 | 51711965252 | $8.73 | Shop at ECS Tuning | |||||
| 12 | Lock | 4 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 13 | Lock insert | 4 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 14 | Supporting frame left | 1 | 63121368857 | $81.63 | Shop at ECS Tuning | |||||
| 14 | Supporting frame right | 1 | 63121368858 | $81.63 | Shop at ECS Tuning | |||||
| 15 | Bulb | 12V 55W H1 | X | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 15 | Bulb H1 Plus | 12V 55W | X | 07500003923 | $8.93 | ENDED | Shop at ECS Tuning | |||
| 16 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 17 | Bulb socket | 2 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 18 | Body nut | ST6,3-1-ZN | 6 | 06/1988 | 07129925742 | $0.25 | ENDED | Shop at ECS Tuning | ||
| 19 | Sheet metal screw | 6 | 63121352070 | $0.62 | Shop at ECS Tuning | |||||
| 20 | Covering cap | HELLA | 2 | 09/1986 | 63121381189 | $22.55 | Shop at ECS Tuning | |||
| 20 | Covering cap | BOSCH | 2 | 09/1986 | 63121385042 | ENDED | Shop at ECS Tuning | |||
| 21 | Covering cap | BOSCH | 2 | 09/1986 | 63121385069 | ENDED | Shop at ECS Tuning | |||
| 21 | Covering cap | 2 | 09/1986 | 63128357401 | $37.87 | Shop at ECS Tuning | ||||
| 21 | Covering cap | 2 | 09/1986 | 63128357402 | $21.20 | ENDED | Shop at ECS Tuning | |||
| 23 | Connector | 1 | 09/1985 | 51711942084 | $3.83 | Shop at ECS Tuning | ||||
| For vehicles with Headlight aim control |
=Yes |
|||||||||
| 24 | Intermediate piece | 2 | 63121370398 | $4.70 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
