Single components for headlight for BMW 7 Series E23 732i (1982)

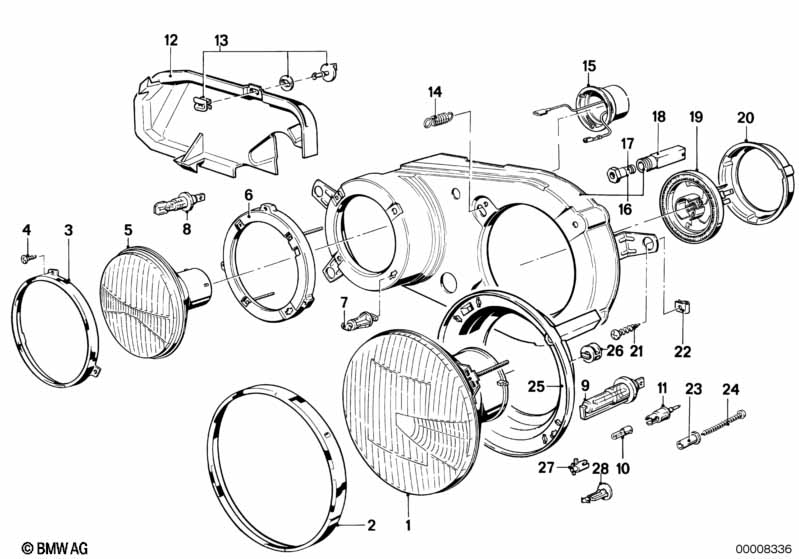

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Low beam insert left | 1 | 09/1982 | 63121363457 | $112.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Low beam insert right | 1 | 09/1982 | 63121363458 | $112.72 | ENDED | Shop at ECS Tuning | |||
| 02 | Glass holding frame | 2 | 09/1982 | 63121362046 | $45.28 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 02 | Glass holding frame left | 1 | 09/1982 | 63121362081 | $60.26 | ENDED | Shop at ECS Tuning | |||
| 02 | Glass holding frame right | 1 | 09/1982 | 63121362082 | $59.71 | ENDED | Shop at ECS Tuning | |||
| 03 | Glass holding frame | 2 | 09/1982 | 63121362477 | $32.43 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 03 | Glass holding frame left | 1 | 09/1982 | 63121362079 | $61.94 | ENDED | Shop at ECS Tuning | |||
| 03 | Glass holding frame right | 1 | 09/1982 | 63121362080 | $55.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | B3,9X8 | 6 | 09/1982 | 63121359777 | $0.42 | Shop at ECS Tuning | |||
| 05 | High beam insert | HELLA | 2 | 09/1982 | 63121356409 | $79.27 | Shop at ECS Tuning | |||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 05 | High beam insert yellow | 2 | 09/1982 | 63121364956 | $61.94 | ENDED | Shop at ECS Tuning | |||
| 06 | Ring | 4 | 09/1982 | 63121362038 | $15.51 | Shop at ECS Tuning | ||||
| 07 | Intermediate piece | 4 | 09/1982 | 63121362036 | $4.42 | Shop at ECS Tuning | ||||
| 08 | Bulb | 12V 55W H1 | X | 09/1982 | 63217160777 | $11.68 | Shop at ECS Tuning | |||
| 09 | Bulb | H4 | 2 | 09/1982 | 63121354619 | $13.63 | Shop at ECS Tuning | |||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 09 | Bulb yellow | H4 | 2 | 09/1982 | 63121356105 | $35.10 | Shop at ECS Tuning | |||
| 10 | Bulb | 12V 4W | X | 09/1982 | 07509063576 | $1.58 | Shop at ECS Tuning | |||
| 11 | Bulb socket | 2 | 09/1982 | 63121362871 | $5.17 | Shop at ECS Tuning | ||||
| 12 | Covering cap left | 1 | 09/1982 | 51711917907 | $4.05 | Shop at ECS Tuning | ||||
| 12 | Covering cap right | 1 | 09/1981 | 09/1982 | 51711917908 | $6.14 | ENDED | Shop at ECS Tuning | ||
| 13 | Lock | 1 | 09/1982 | 51711857441 | $3.63 | ENDED | Shop at ECS Tuning | |||
| 14 | Tension spring | 4 | 09/1982 | 63121362037 | $3.00 | Shop at ECS Tuning | ||||
| 15 | Covering cap | HELLA | 2 | 09/1982 | 63121372732 | $26.55 | ENDED | Shop at ECS Tuning | ||
| 16 | Supporting frame left | 1 | 09/1982 | 63121362087 | $113.84 | ENDED | Shop at ECS Tuning | |||
| 16 | Supporting frame right | 1 | 09/1982 | 63121362088 | $83.14 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Headlight aim control |
=Yes =Yes |
|||||||||
| 16 | Supporting frame left | 1 | 09/1982 | 63121365725 | $96.26 | ENDED | Shop at ECS Tuning | |||
| 16 | Supporting frame right | 1 | 09/1982 | 63121365726 | $96.26 | ENDED | Shop at ECS Tuning | |||
| 17 | Bush | 8 | 09/1982 | 63121364940 | $4.97 | Shop at ECS Tuning | ||||
| 18 | Adjusting nut | 8 | 09/1982 | 63121362049 | $2.54 | Shop at ECS Tuning | ||||
| 19 | Covering cap | 2 | 09/1982 | 63121372733 | $30.37 | ENDED, +core | Shop at ECS Tuning | |||
| 20 | Clamp ring | 2 | 09/1982 | 63121364799 | $7.42 | ENDED | Shop at ECS Tuning | |||
| 21 | Sheet metal screw | 6 | 09/1982 | 63121352070 | $0.62 | Shop at ECS Tuning | ||||
| 22 | Body nut | ST6,3-1-ZNS3 | 6 | 09/1982 | 07129904231 | Shop at ECS Tuning | ||||
| 23 | Spacer bush | 1 | 09/1982 | 64501365076 | $1.63 | Shop at ECS Tuning | ||||
| 24 | Sheet metal screw | 6,3 X 60 | 1 | 09/1982 | 64501365077 | $0.45 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Headlight aim control |
=Yes |
|||||||||
| 25 | Intermediate ring | 2 | 09/1982 | 63121363387 | $38.78 | ENDED | Shop at ECS Tuning | |||
| 26 | Intermediate piece | 4 | 09/1982 | 63121363396 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 27 | Support | 2 | 09/1982 | 63121363392 | $2.03 | Shop at ECS Tuning | ||||
| 28 | Joint pin | 2 | 09/1982 | 63121363395 | $1.13 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
