Fog lights for BMW 7 Series E32 740iL (1994)

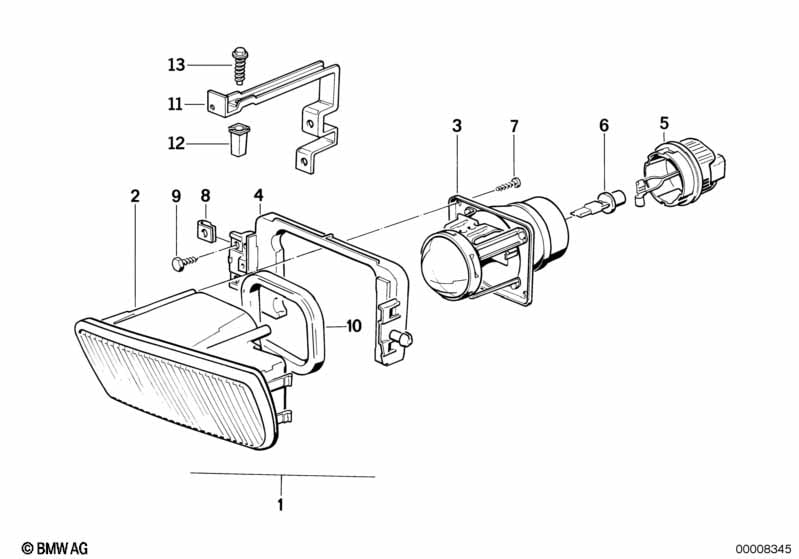

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, yellow, left | 1 | 03/1989 | 63171390091 | Shop at ECS Tuning | |||||
| 01 | Fog lights, yellow, right | 1 | 03/1989 | 63171390092 | $184.14 | Shop at ECS Tuning | ||||
| 01 | Fog lights, left | 1 | 03/1989 | 63171390879 | $179.23 | Shop at ECS Tuning | ||||
| 01 | Fog lights, right | 1 | 03/1989 | 63171390880 | $179.23 | Shop at ECS Tuning | ||||
| 02 | Lamp lens left | 1 | 63171379107 | $71.33 | Shop at ECS Tuning | |||||
| 02 | Lamp lens right | 1 | 63171379108 | $71.33 | Shop at ECS Tuning | |||||
| 02 | Left yellow lamp lens | 1 | 63171379273 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Right yellow lamp lens | 1 | 63171379274 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Reflector | 2 | 03/1989 | 63171390086 | ENDED | Shop at ECS Tuning | ||||
| 04 | Support left | 1 | 63171379111 | $29.43 | Shop at ECS Tuning | |||||
| 04 | Support right | 1 | 63171379112 | $29.43 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 2 | 63171379116 | $24.25 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 55W H1 | X | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 06 | Bulb H1 Plus | 12V 55W | X | 07500003923 | $8.93 | ENDED | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | 8 | 07146977197 | $5.80 | Shop at ECS Tuning | |||||
| 08 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket | 1 | 63171379110 | $7.46 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
