Fog lights for BMW 5 Series E28 525i (1987)

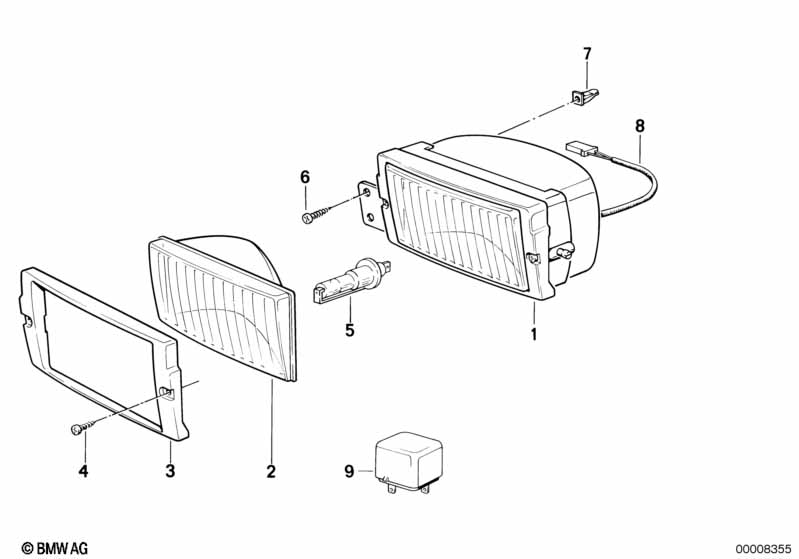

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 09/1982 | 63171375057 | $94.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Fog lights, right | 1 | 09/1982 | 63171375058 | $94.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 01 | Fog lights, right | 1 | 63171375064 | $85.10 | ENDED | Shop at ECS Tuning | ||||
| 01 | Fog lights, left | 1 | 09/1982 | 63171375063 | $85.10 | ENDED | Shop at ECS Tuning | |||
| 02 | Lamp insert left | 1 | 63171375049 | Shop at ECS Tuning | ||||||
| 02 | Lamp insert right | 1 | 63171375050 | Shop at ECS Tuning | ||||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 02 | Left yellow lamp lens | 1 | 63171375071 | $81.46 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right yellow lamp lens | 1 | 63171375072 | $81.46 | ENDED | Shop at ECS Tuning | ||||
| 03 | Glass holding frame | 2 | 63171375051 | $12.57 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | 4 | 07146977197 | $5.80 | Shop at ECS Tuning | |||||
| 05 | Bulb | 12V 55W H1 | X | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X13-Z2 | 2 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | ST 4.8 WEISS | 4 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Diode relay | 1 | 61311380014 | $17.00 | ENDED | Shop at ECS Tuning | ||||
