Fog lights for BMW 3 Series E30 316i (1991)

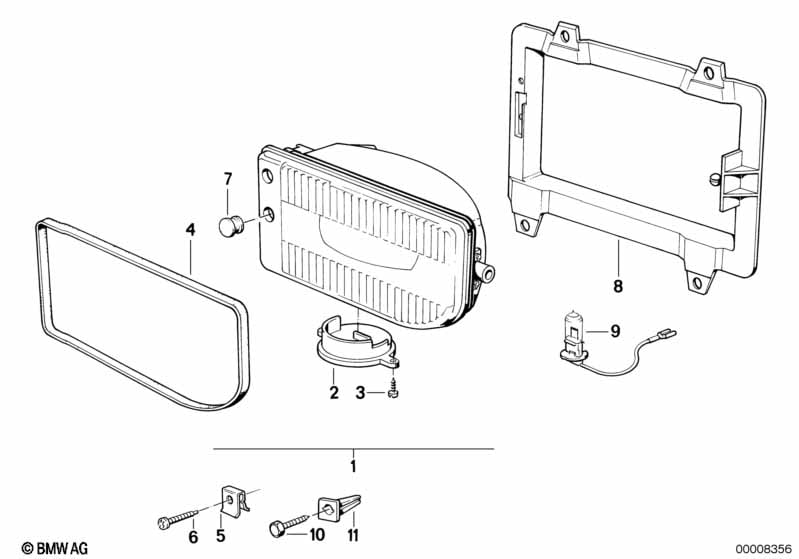

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 63171385945 | $232.41 | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 63171385946 | $232.41 | Shop at ECS Tuning | |||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 01 | Fog lights, yellow, left | 1 | 63171386049 | $261.83 | Shop at ECS Tuning | |||||
| 01 | Fog lights, yellow, right | 1 | 63171386050 | $261.83 | Shop at ECS Tuning | |||||
| 02 | Covering cap | 2 | 63171386041 | $7.53 | Shop at ECS Tuning | |||||
| 03 | Fillister head self-tapping screw | ST4,2X16-ABW | 2 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Gasket left | 2 | 63171386647 | $7.75 | Shop at ECS Tuning | |||||
| 04 | Gasket right | 2 | 63171386648 | ENDED | Shop at ECS Tuning | |||||
| 05 | Clip | 2 | 63171381691 | $3.62 | ENDED | Shop at ECS Tuning | ||||
| 06 | Oval-head screw black | M4X30-4.8-H-ZN | 2 | 07119907591 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Plug | 4 | 63171381646 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 07 | Yellow plug | 4 | 63171386492 | ENDED | Shop at ECS Tuning | |||||
| 08 | Support left | 1 | 63171386039 | $17.57 | Shop at ECS Tuning | |||||
| 08 | Support right | 1 | 63171386040 | $17.57 | Shop at ECS Tuning | |||||
| 09 | Bulb | 12V 55W H3 | 2 | 63217160779 | $21.84 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST4,8X13-ZN3 | 8 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 316i Fog lights?
- This technical diagram illustrates the Fog lights within the Lighting group for the 3 Series E30 316i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Fog lights, left (Part #63171385945).
- Which models use the hardware listed in this Fog lights?
- The hardware and components featured in the Fog lights are specific to the 3 Series E30 316i produced during 1991. These technical specifications ensure that parts like the Fog lights, left (63171385945) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fog lights assembly?
- Each item in the Fog lights corresponds to the numbered list below the illustration. For the 3 Series E30 316i, you can identify the Fog lights, left by locating its position on the schematic, which then links to the official BMW part number 63171385945 for the Lighting section.
