Fog lights for BMW 3 Series E30 M3 (1990)

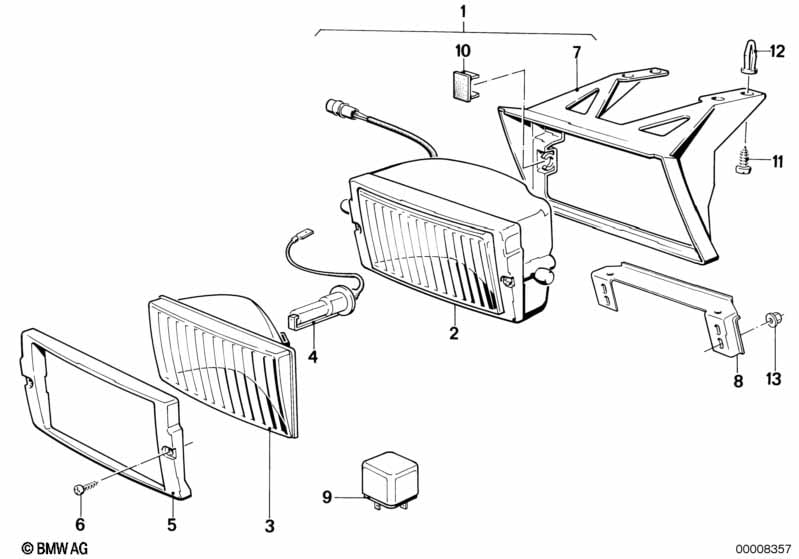

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fog lights, left | 1 | 63171381419 | $125.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fog lights, right | 1 | 63171381420 | $125.08 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 02 | Fog lights, yellow, left | 1 | 63171381521 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fog lights, right | GELB | 1 | 63171381522 | $125.08 | ENDED | Shop at ECS Tuning | |||
| 03 | Lamp insert left | 1 | 63171375049 | Shop at ECS Tuning | ||||||
| 03 | Lamp insert right | 1 | 63171375050 | Shop at ECS Tuning | ||||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 03 | Left yellow lamp lens | 1 | 63171375071 | $81.46 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right yellow lamp lens | 1 | 63171375072 | $81.46 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 55W H3 | 2 | 63217160779 | $21.84 | Shop at ECS Tuning | ||||
| 05 | Glass holding frame | 2 | 63171375051 | $12.57 | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | 2 | 07146977197 | $5.80 | Shop at ECS Tuning | |||||
| 08 | Holder | 2 | 51111940377 | $13.47 | ENDED | Shop at ECS Tuning | ||||
| 09 | Relay, two-pole make contact, black | 1 | 61368353447 | $13.96 | Shop at ECS Tuning | |||||
| 13 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
