Fog lights for BMW 7 Series E23 728i (1982)

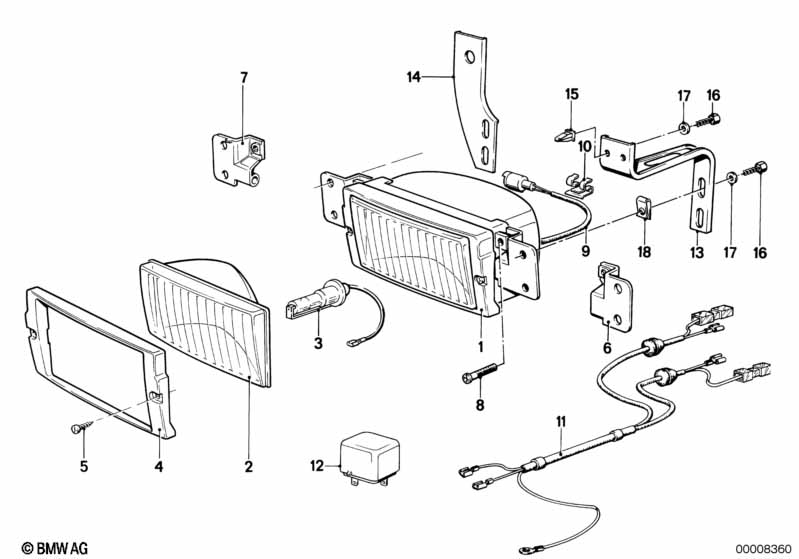

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.

Fog lights
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fog lights, left 1 09/1982 63171375041 Shop at ECS Tuning
01 Fog lights, right 1 09/1982 63171375066 $116.74 ENDED Shop at ECS Tuning
02 Lamp insert left 1 09/1982 63171375049 Shop at ECS Tuning
02 Lamp insert right 1 09/1982 63171375050 Shop at ECS Tuning
03 Bulb 12V 55W H1 X 09/1982 63217160777 $11.68 Shop at ECS Tuning
04 Glass holding frame 2 09/1982 63171375051 $12.57 Shop at ECS Tuning
05 Fillister head self-tapping screw 4 09/1982 07146977197 $5.80 Shop at ECS Tuning
06 Bracket left 1 09/1982 63171375047 $2.95 Shop at ECS Tuning
07 Bracket right 1 09/1982 63171375048 $2.95 ENDED Shop at ECS Tuning
08 Fillister head screw 4 09/1982 63171367316 $0.27 ENDED Shop at ECS Tuning
09 Wiring set fog lights 1 09/1982 63171369498 ENDED Shop at ECS Tuning
10 Clamp 2 09/1982 63171367998 $1.78 ENDED Shop at ECS Tuning
11 Wiring set fog lights 1 09/1982 09/1984 61121372145 $29.98 ENDED Shop at ECS Tuning
12 Relay, two-pole make contact, black 1 09/1982 61368353447 $13.96 Shop at ECS Tuning
13 Holder 2 09/1982 63171371389 $2.95 Shop at ECS Tuning
14 Bracket left 1 09/1982 63171371387 $3.27 Shop at ECS Tuning
14 Bracket right 1 09/1982 63171371388 $3.27 Shop at ECS Tuning
15 Expanding nut ST 4.8 WEISS 4 09/1982 63171367868 $0.60 Shop at ECS Tuning
16 Fillister head self-tapping screw ST4,8X13 8 09/1982 07119907786 $0.11 Shop at ECS Tuning
16 Fillister head self-tapping screw ST4,8X16-Z1 4 09/1982 07119907925 $0.25 Shop at ECS Tuning
17 Washer 10X5,3X1-200 HV X 09/1982 07119904206 Shop at ECS Tuning
17 Washer 5.3-140 HV-ZNS X 09/1982 07119936439 $0.40 Shop at ECS Tuning
18 C-clip nut X 09/1982 07146955207 $0.29 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
