Turn indicator for BMW 3 Series E21 320i (1979)

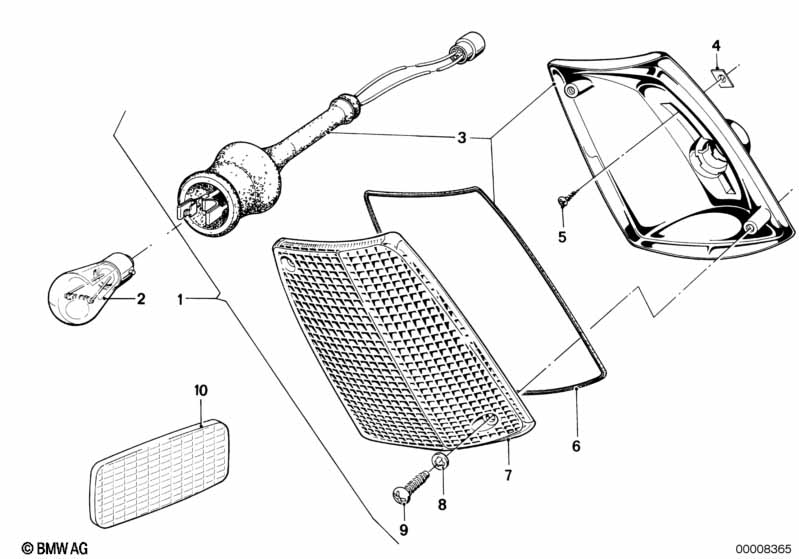

This Turn indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flasher-parking-positioning light left | 1 | 63131360087 | $85.30 | ENDED | Shop at ECS Tuning | ||||
| 01 | Flasher-parking-positioning light right | 1 | 63131360088 | $85.30 | Shop at ECS Tuning | |||||
| 02 | Longlife bulb | 12V 21/5W | 2 | 07119905511 | $4.88 | Shop at ECS Tuning | ||||
| 02 | Bulb | 12V 21/5W | 2 | 63217160793 | $3.92 | Shop at ECS Tuning | ||||
| 03 | Flasher-parking-positioning light left | 1 | 63131360087 | $85.30 | ENDED | Shop at ECS Tuning | ||||
| 03 | Flasher-parking-positioning light right | 1 | 63131360088 | $85.30 | Shop at ECS Tuning | |||||
| 04 | Body nut | ST 4,8-4-ZNS3 | 4 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,8X16-Z1 | 4 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Gasket left | 6,5X3,5X500MM | 1 | 63131366085 | $3.85 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket right | 6,5X3,5X500MM | 1 | 63131366086 | $3.85 | ENDED | Shop at ECS Tuning | |||
| 07 | Lens left | 1 | 63131360093 | $19.27 | Shop at ECS Tuning | |||||
| 07 | Lens right | 1 | 63131360094 | $19.27 | Shop at ECS Tuning | |||||
| 08 | Washer-gasket | 4 | 63131361965 | $0.78 | ENDED | Shop at ECS Tuning | ||||
| 09 | Screw | 4 | 63131359937 | $0.73 | ENDED | Shop at ECS Tuning | ||||
| 10 | Side reflector front | GELB | 2 | 63141360809 | $17.73 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
