Turn indicator for BMW 5 Series E28 528i (1988)

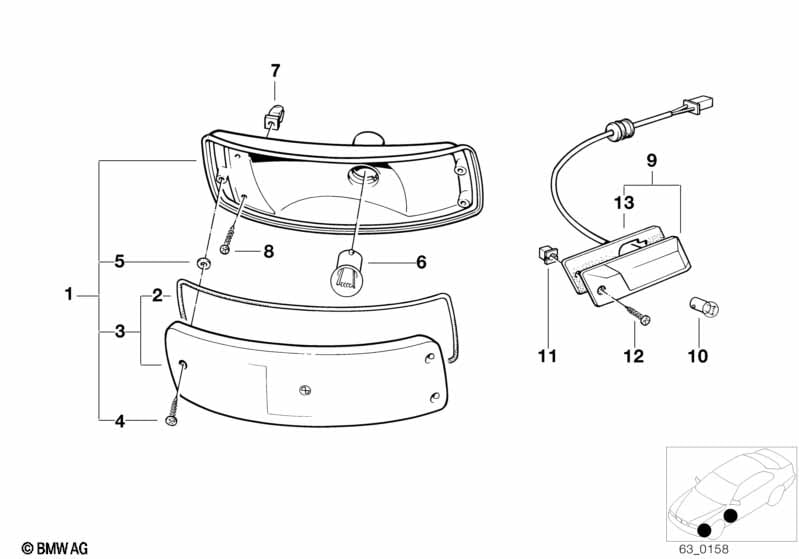

This Turn indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left turn indicator | 1 | 63131373297 | $93.58 | Shop at ECS Tuning | |||||
| 01 | Right turn indicator | 1 | 63131373298 | $93.58 | Shop at ECS Tuning | |||||
| 02 | Gasket | 2 | 63131366573 | $9.96 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lens right | 1 | 63139069124 | $30.92 | Shop at ECS Tuning | |||||
| 03 | Lens left | 1 | 63139069125 | $30.92 | Shop at ECS Tuning | |||||
| 04 | Screw | 6 | 63131359937 | $0.73 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer-gasket | 6 | 63131361965 | $0.78 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | ST 4.8 WEISS | 6 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,8X16 Z2 | 6 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 09 | Left turn indicator | 1 | 63131367801 | $35.94 | ENDED | Shop at ECS Tuning | ||||
| 09 | Right turn indicator | 1 | 63131367802 | $35.94 | ENDED | Shop at ECS Tuning | ||||
| 10 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | ST 3.9 | 2 | 51711874203 | $0.23 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST3,9X16 | 2 | 07119906734 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Gasket left | 1 | 63131367803 | $8.37 | ENDED | Shop at ECS Tuning | ||||
| 13 | Gasket right | 1 | 63131367804 | $9.36 | ENDED | Shop at ECS Tuning |
