Front/front lateral turn indicator for BMW 3 Series E30 318is (1991)

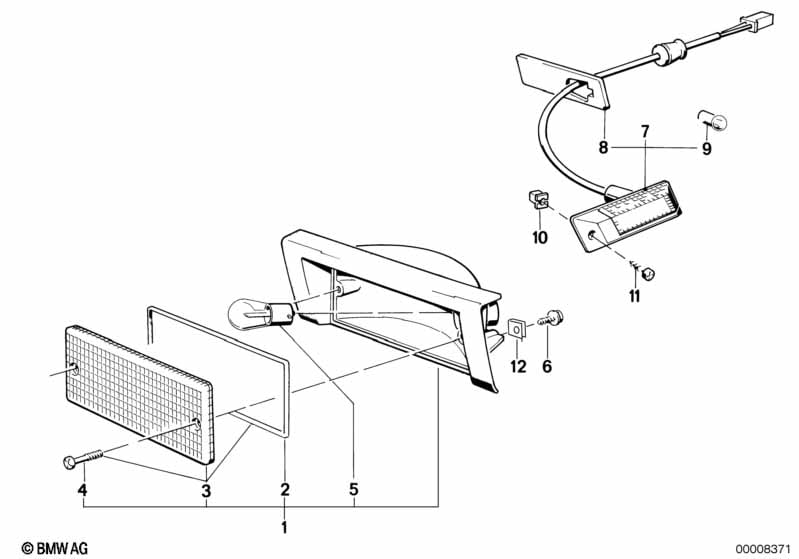

This Front/front lateral turn indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left turn indicator | 1 | 06/1988 | 63131380965 | $39.13 | Shop at ECS Tuning | ||||
| 01 | Right turn indicator | 1 | 06/1988 | 63131380966 | $39.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket | 2 | 06/1988 | 63131370397 | $9.59 | Shop at ECS Tuning | ||||
| 03 | Lens | SIDLER | 2 | 06/1988 | 63131386015 | $24.64 | Shop at ECS Tuning | |||
| 03 | Lens | ULO | 2 | 06/1988 | 63131386014 | $15.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex head screw | ST4,8X16-ZNS3 | 2 | 06/1988 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 04 | Fillister head screw | 2 | 06/1988 | 63131369303 | $2.85 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | 12V 21/5W | 2 | 07119905511 | $4.88 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 21/5W | 2 | 06/1988 | 63217160793 | $3.92 | Shop at ECS Tuning | |||
| 06 | Hex head screw | ST4,8X16-ZNS3 | 2 | 06/1988 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 06 | Fillister head screw | 2 | 06/1988 | 63131369303 | $2.85 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
