Turn indicator for BMW 3 Series E30 M3 (1990)

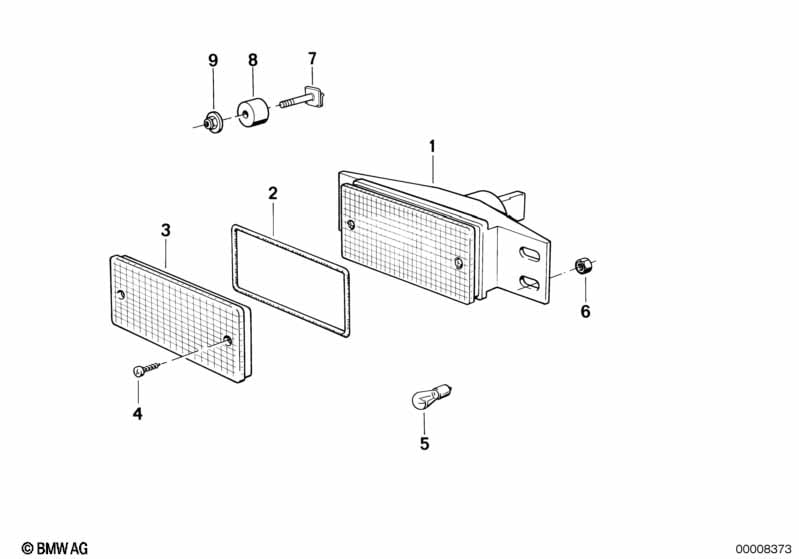

This Turn indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Left turn indicator | 1 | 63131376971 | $70.85 | Shop at ECS Tuning | |||||
| 01 | Right turn indicator | 1 | 63131376972 | $43.62 | Shop at ECS Tuning | |||||
| 02 | Gasket | 2 | 63131369304 | $4.45 | Shop at ECS Tuning | |||||
| 03 | Lens left | 1 | 63131376873 | $16.82 | Shop at ECS Tuning | |||||
| 03 | Lens right | 1 | 63131376874 | $16.82 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | 4 | 63131369303 | $2.85 | Shop at ECS Tuning | |||||
| 05 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 07 | Screw | 2 | 51111932758 | $6.67 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bump stop | 2 | 51111932756 | $1.84 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6 | 2 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
