Side marker light for BMW 7 Series E23 733i (1979)

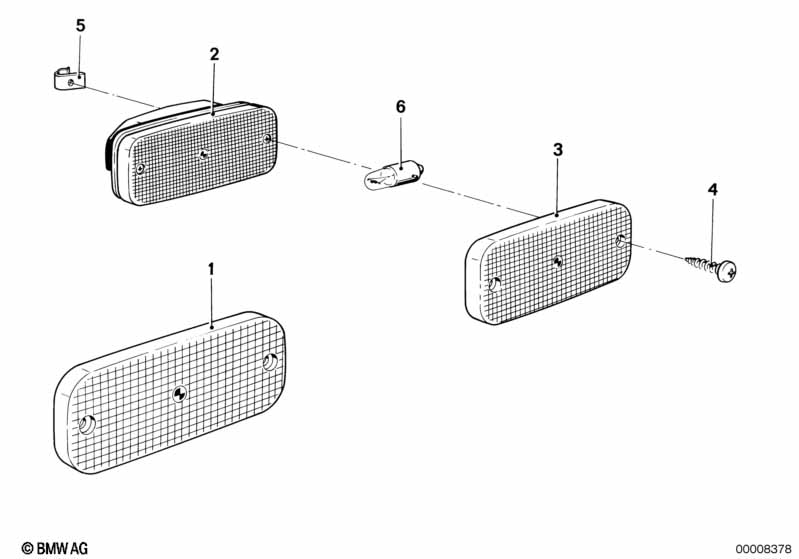

This Side marker light technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side reflector front | GELB | 2 | 63141360809 | $17.73 | Shop at ECS Tuning | ||||
| 02 | Side marker light, rear | 2 | 63141370266 | $35.60 | Shop at ECS Tuning | |||||

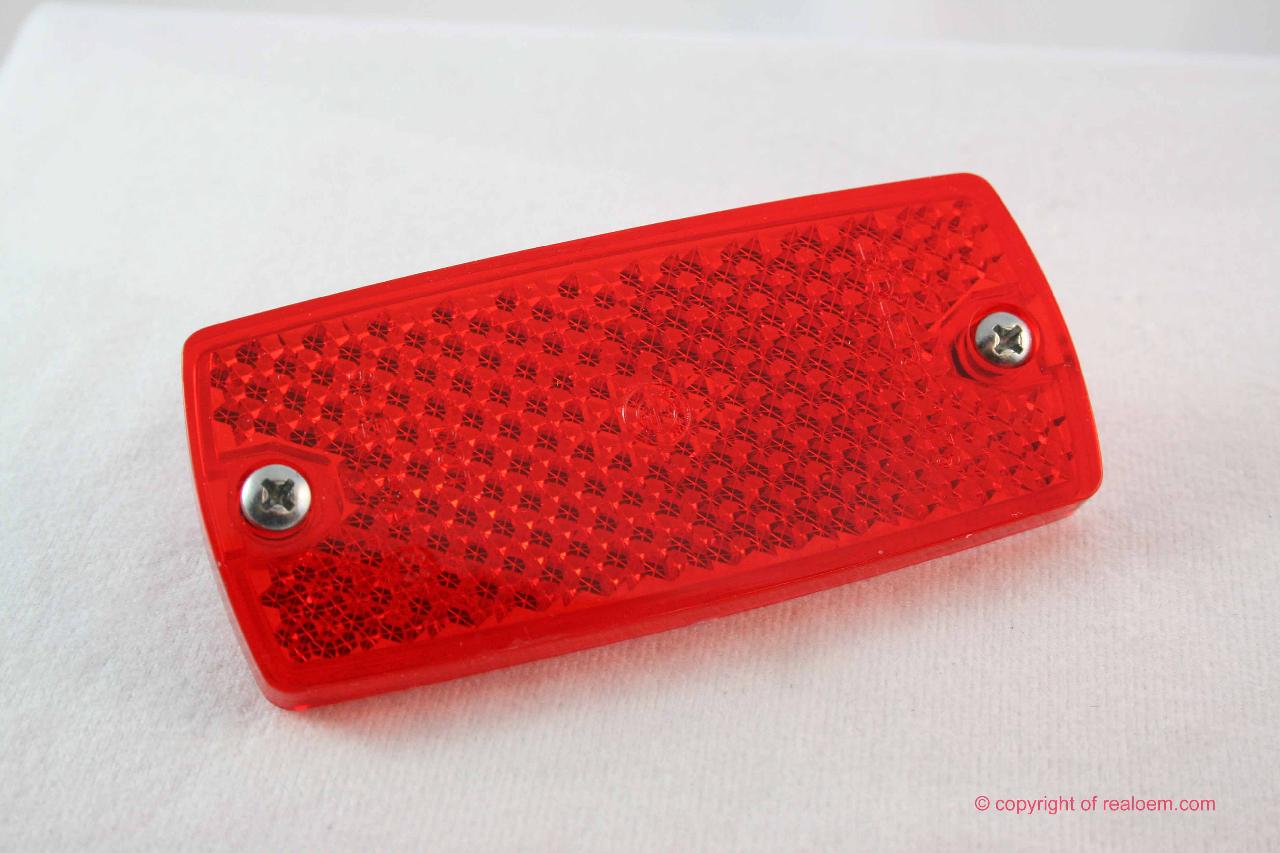

| 03 | Lens rear | 2 | 63141364961 | $24.64 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X22 | 4 | 07119906760 | $0.31 | ENDED | Shop at ECS Tuning | |||
| 05 | Body nut | ST4,2-2ZNS | 4 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Side marker light?
- This technical diagram illustrates the Side marker light within the Lighting group for the 7 Series E23 733i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Side reflector front (Part #63141360809).
- Which models use the hardware listed in this Side marker light?
- The hardware and components featured in the Side marker light are specific to the 7 Series E23 733i produced during 1979. These technical specifications ensure that parts like the Side reflector front (63141360809) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side marker light assembly?
- Each item in the Side marker light corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Side reflector front by locating its position on the schematic, which then links to the official BMW part number 63141360809 for the Lighting section.
