Rear light for BMW 3 Series E21 320i (1977)

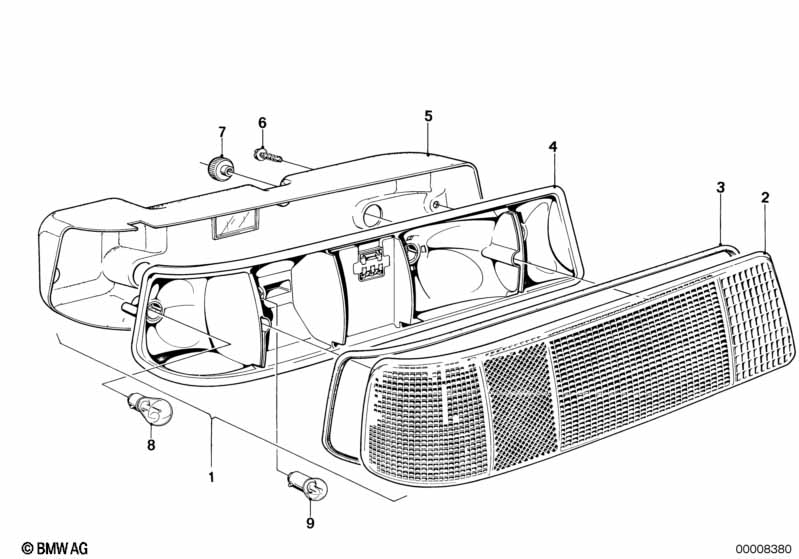

This Rear light technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 09/1979 | 63211357333 | ENDED | Shop at ECS Tuning | ||||
| 01 | Tail light right | 1 | 09/1979 | 63211357334 | $58.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Lens left | 1 | 09/1979 | 63211357345 | $112.17 | Shop at ECS Tuning | ||||
| 02 | Lens right | 1 | 09/1979 | 63211357346 | $112.17 | ENDED | Shop at ECS Tuning | |||
| 03 | Sealing frame left | 1 | 09/1979 | 63211362665 | $82.56 | ENDED | Shop at ECS Tuning | |||
| 03 | Sealing frame right | 1 | 09/1979 | 63211362666 | $82.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Reflector left | 1 | 09/1979 | 63211357341 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reflector right | 1 | 09/1979 | 63211357342 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering left | 1 | 09/1979 | 63211357351 | $41.36 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering right | 1 | 09/1979 | 63211357352 | $39.04 | ENDED | Shop at ECS Tuning | |||
| 06 | Screw | X | 09/1979 | 63211363202 | $1.03 | ENDED | Shop at ECS Tuning | |||
| 07 | Knurled head nut | M5 | 4 | 09/1979 | 63218654122 | $0.90 | ENDED | Shop at ECS Tuning | ||
| 08 | Bulb | P21W/12V/21W | X | 09/1979 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 08 | Longlife bulb | P21W/12V/21W | X | 09/1979 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 09 | Bulb | 12V 10W | X | 09/1979 | 07119905337 | $1.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
