Rear light for BMW 5 Series E12 520 (1981)

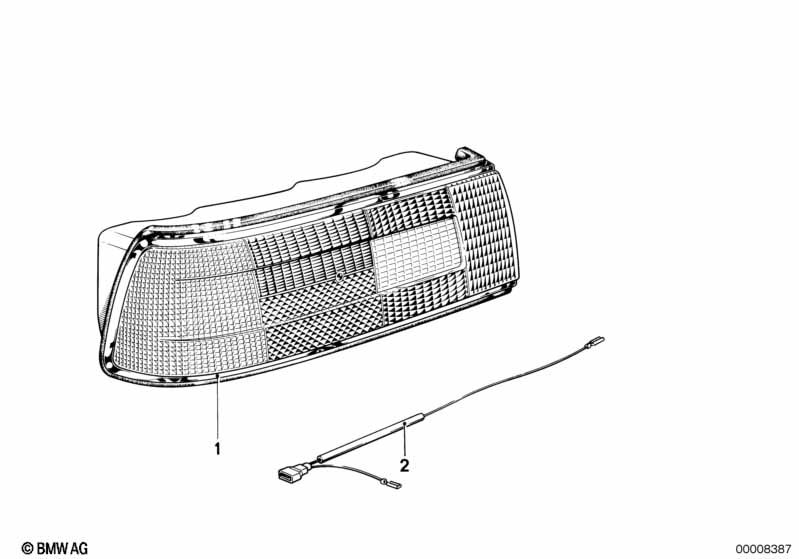

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left tail light with rear fog light | 1 | 08/1976 | 63211368201 | $290.16 | ENDED | Shop at ECS Tuning | |||
| 01 | Tail light right | 1 | 08/1976 | 63211368202 | $290.16 | Shop at ECS Tuning | ||||
| 01 | Tail light left | 1 | 08/1976 | 63211368205 | $291.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Right tail light with rear fog light | 1 | 08/1976 | 63211368206 | $285.70 | Shop at ECS Tuning | ||||
| 02 | Wiring 2nd rear fog light | 1 | 08/1976 | 61121367796 | $5.03 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
