Rear light for BMW 7 Series E23 733i (1979)

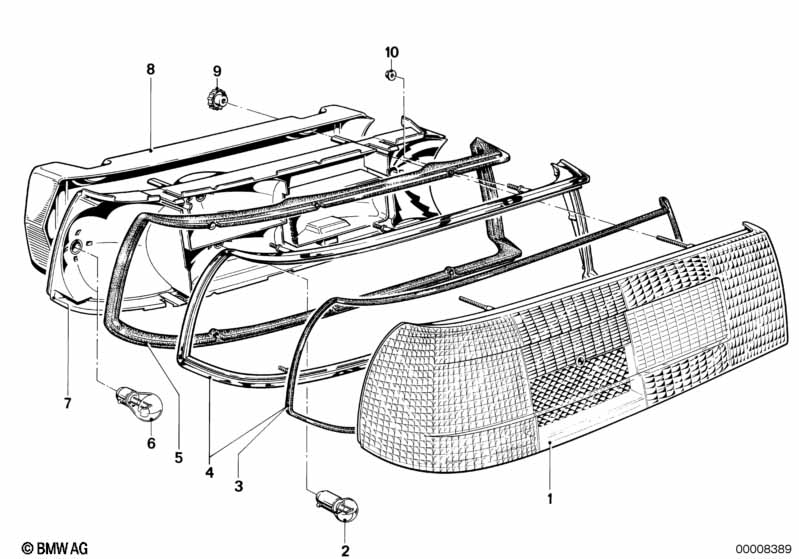

This Rear light technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lens with fog light right | 1 | 63211367958 | $236.16 | Shop at ECS Tuning | |||||
| 01 | Lens with fog light left | 1 | 63211368209 | $241.63 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lens right | 1 | 63211368210 | $116.06 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 5W | X | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Gasket | 2 | 63211361925 | $3.07 | ENDED | Shop at ECS Tuning | ||||
| 04 | Decorative frame left | 1 | 63211361927 | $90.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | Decorative frame right | 1 | 63211361928 | $87.34 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sealing frame left | 1 | 63211361929 | $30.80 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sealing frame right | 1 | 63211361930 | $30.80 | Shop at ECS Tuning | |||||
| 06 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Left tail light with rear fog light | 1 | 63211368207 | $255.17 | ENDED | Shop at ECS Tuning | ||||
| 07 | Tail light left | 1 | 63211368211 | $416.92 | ENDED | Shop at ECS Tuning | ||||
| 07 | Right tail light with rear fog light | 1 | 63211368212 | $255.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering left | 1 | 63211361931 | $47.07 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering right | 1 | 63211361932 | $47.07 | ENDED | Shop at ECS Tuning | ||||
| 09 | Knurled head nut | M5 | 8 | 63218654122 | $0.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut with plate | M5 | X | 63259128043 | $0.72 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
