Rear light for BMW 5 Series E28 535i (1981)

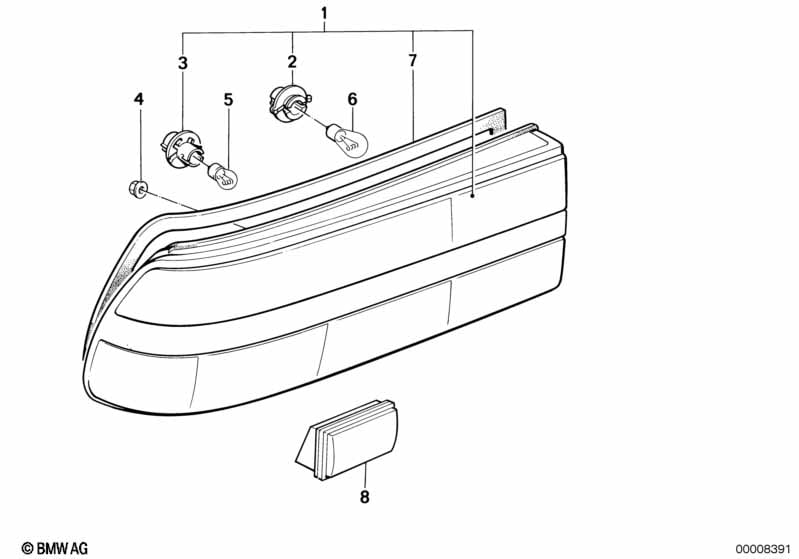

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left tail light with rear fog light | 1 | 63211366769 | $435.94 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right tail light with rear fog light | 1 | 63211366770 | $435.94 | Shop at ECS Tuning | |||||
| 02 | Bulb socket | X | 63211369306 | $6.00 | Shop at ECS Tuning | |||||
| 03 | Bulb socket | 2 | 63211369270 | $6.00 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M5 | X | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 5W | X | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 06 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Gasket | 2 | 63211369269 | $17.06 | Shop at ECS Tuning | |||||
| 08 | Reflector | RED | 2 | 63213902839 | Shop at ECS Tuning |
