Rear light for BMW 7 Series E32 735iL (1992)

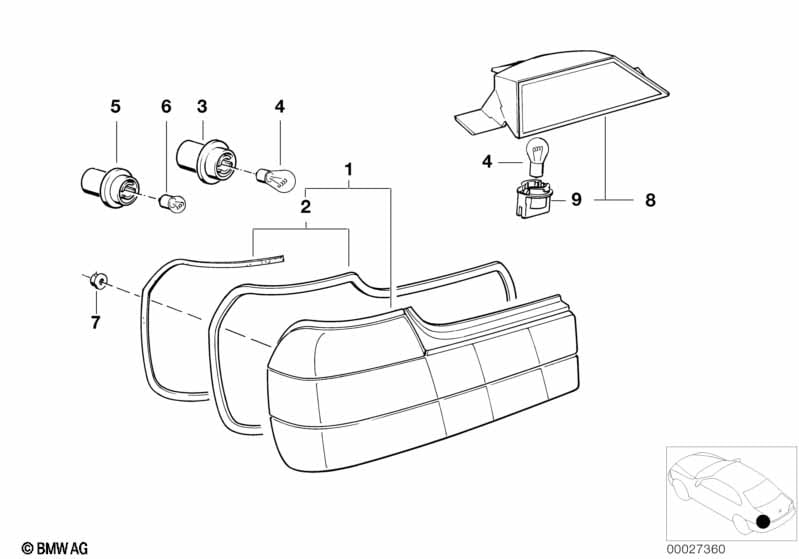

This Rear light technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 63211379497 | $236.02 | Shop at ECS Tuning | |||||
| 01 | Tail light right | 1 | 63211379498 | $236.02 | Shop at ECS Tuning | |||||
| 02 | Gasket | 2 | 63219069131 | $26.84 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bulb socket | 8 | 63211374043 | $9.05 | Shop at ECS Tuning | |||||
| 04 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 04 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 05 | Bulb socket | 2 | 63211374044 | $9.05 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M5 | X | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 08 | Stoplamp | 1 | 63251378792 | $51.93 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bulb socket | P21W | 1 | 63218355883 | $7.32 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
