Rear light for BMW 5 Series E34 520i (1990)

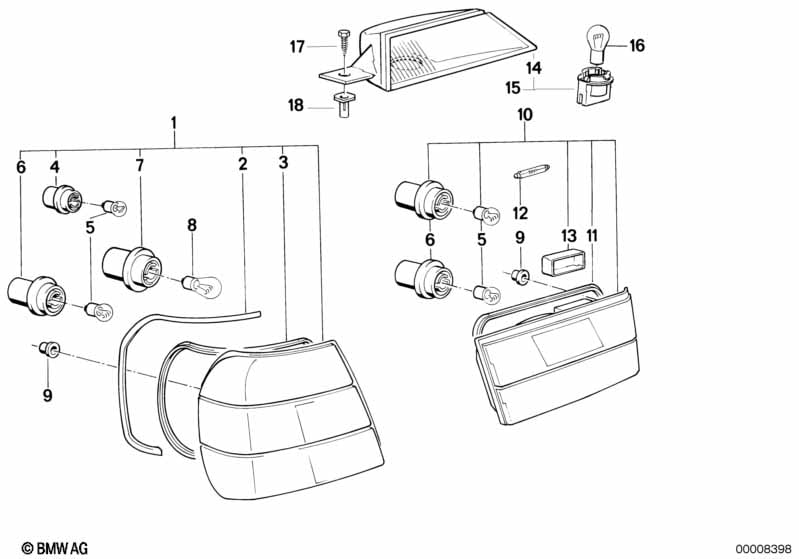

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 63211384009 | $134.43 | Shop at ECS Tuning | |||||
| 01 | Rear light in the side panel, right | 1 | 63211384010 | $134.43 | Shop at ECS Tuning | |||||
| 03 | Gasket | 525MM | 2 | 63211384019 | $4.43 | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 1 | 63211379395 | $9.05 | Shop at ECS Tuning | |||||
| 05 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Bulb socket | 6 | 04/1991 | 63211379399 | $9.05 | Shop at ECS Tuning | ||||
| 07 | Bulb socket | 2 | 63211379397 | $9.05 | Shop at ECS Tuning | |||||
| 08 | Bulb | 12V 10W | X | 07119905337 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M5 | X | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 10 | Rear light in trunk lid, left | 1 | 63211384011 | $119.65 | Shop at ECS Tuning | |||||
| 10 | Rear light in trunk lid, right | 1 | 63211384012 | $119.65 | Shop at ECS Tuning | |||||
| For vehicles with Nordic countries version |
=Yes |
|||||||||
| 10 | Rear light in trunk lid, right | 1 | 63211379398 | $119.65 | Shop at ECS Tuning | |||||
| 11 | Gasket | 584MM | 1 | 63211384020 | $4.43 | Shop at ECS Tuning | ||||
| 12 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 13 | Luggage compartment light/Trunk lid | 2 | 63311389613 | $11.28 | Shop at ECS Tuning | |||||
| 14 | Third stoplamp | 1 | 63251384488 | $51.93 | Shop at ECS Tuning | |||||
| 15 | Bulb socket | 1 | 04/1991 | 63211379399 | $9.05 | Shop at ECS Tuning | ||||
| 16 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 16 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST4,8X16-ZNS3 | 1 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Expanding nut | ST 4.8 GRAU | 1 | 63171386461 | $2.28 | Shop at ECS Tuning | ||||
