Registration plate light for BMW 3 Series E30 M3 (1990)

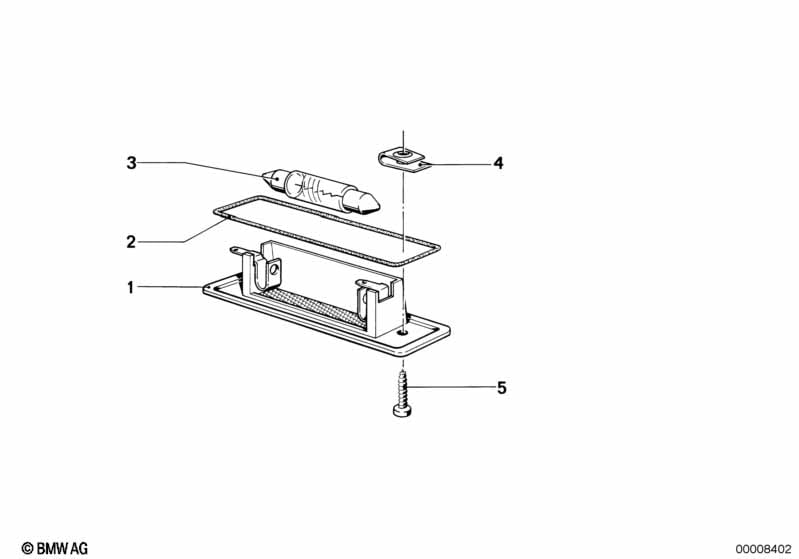

This Registration plate light technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Registration plate light | HELLA | 1 | 09/1993 | 63261372763 | Shop at ECS Tuning | ||||
| 01 | Registration plate light right | HELLA | 1 | 09/1993 | 63261372764 | ENDED | Shop at ECS Tuning | |||
| 01 | Registration plate light | 1 | 63261354665 | $54.18 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket | SIDLER | 2 | 63261354034 | $4.24 | Shop at ECS Tuning | ||||
| 03 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST3,9-4 | 4 | 07129901640 | ENDED | Shop at ECS Tuning | ||||
| 04 | Expanding nut | 4 | 63261378067 | $0.25 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST3,9X13 | 4 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
