Third stoplamp for BMW 3 Series E30 320i (1992)

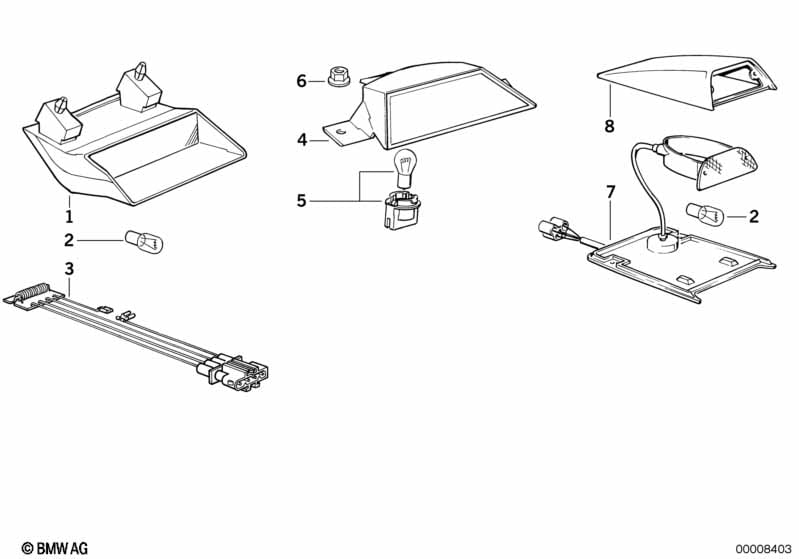

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bulb | 1 | 09/1988 | 63251372632 | $7.60 | ENDED | Shop at ECS Tuning | |||
| 02 | Bulb | 1 | 09/1988 | 63251372632 | $7.60 | ENDED | Shop at ECS Tuning | |||
| 07 | Lamp | 1 | 09/1988 | 63251386147 | $133.54 | ENDED | Shop at ECS Tuning | |||
| 07 | Lamp | 1 | 09/1988 | 63251386147 | $133.54 | ENDED | Shop at ECS Tuning | |||
| 08 | Cap prime coated | 1 | 09/1988 | 63251386564 | $132.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Cap prime coated | 1 | 09/1988 | 63251386564 | $132.14 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Third stoplamp?
- This technical diagram illustrates the Third stoplamp within the Lighting group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Bulb (Part #63251372632).
- Which models use the hardware listed in this Third stoplamp?
- The hardware and components featured in the Third stoplamp are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Bulb (63251372632) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Third stoplamp assembly?
- Each item in the Third stoplamp corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Bulb by locating its position on the schematic, which then links to the official BMW part number 63251372632 for the Lighting section.
