Various lamps for BMW 3 Series E21 320i (1978)

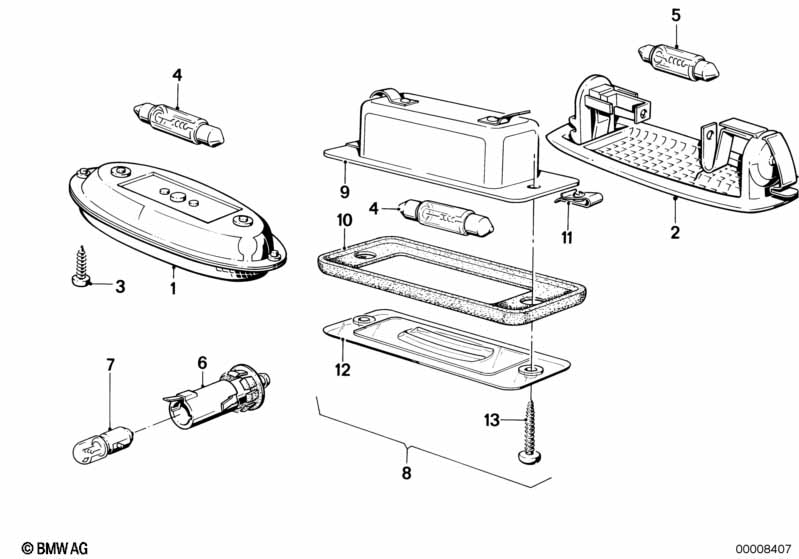

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 01 | Interior light | 1 | 06/1976 | 63311367353 | Shop at ECS Tuning | |||||
| 02 | Interior light | 1 | 63311367353 | Shop at ECS Tuning | ||||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 02 | Interior light | 2 | 08/1976 | 04/1980 | 63311358541 | $21.63 | ENDED | Shop at ECS Tuning | ||
| 03 | Csk.lenshead screw | ST2,9X9,5 | 2 | 07119902205 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Switch glove box light | 1 | 63311357898 | $8.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Registration plate light | HELLA | 2 | 08/1976 | 63261366587 | $44.11 | Shop at ECS Tuning | |||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 08 | Registration plate light | 2 | 63261353470 | $50.43 | Shop at ECS Tuning | |||||
| 09 | Registration plate light | HELLA | 2 | 63261366587 | $44.11 | Shop at ECS Tuning | ||||
| 10 | Registration plate light | HELLA | 2 | 63261366587 | $44.11 | Shop at ECS Tuning | ||||
| 11 | Body nut | B3,9-6 | 4 | 63261366551 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Registration plate light | HELLA | 2 | 63261366587 | $44.11 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,9X19 | 4 | 07119906744 | $0.37 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,9X16 | 4 | 07119906745 | $0.29 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
