Various lamps for BMW 5 Series E12 528 (1977)

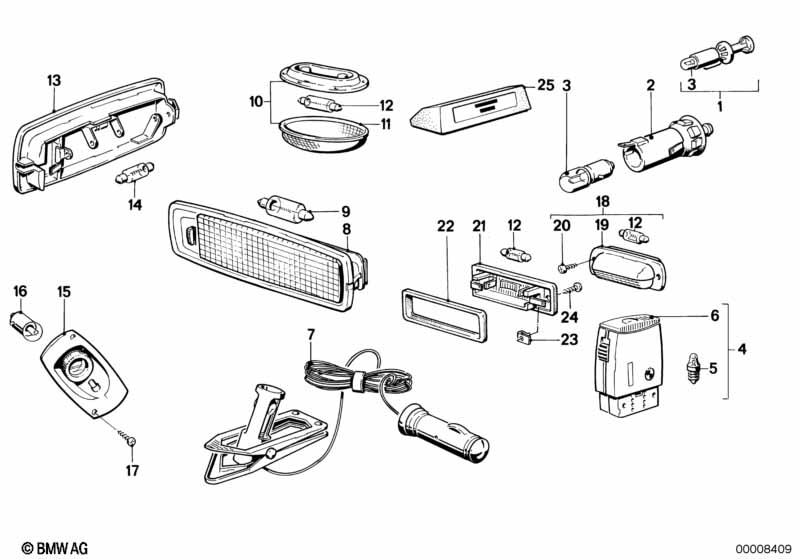

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Switch glove box light | 1 | 11/1976 | 63311357898 | $8.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 04 | Chargeable hand lamp | 10 ST. | 1 | 82119413147 | $27.25 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Bulb | 0,18A | 1 | 63171360377 | $5.14 | ENDED | Shop at ECS Tuning | |||
| 05 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 06 | Lens | 1 | 82119413148 | $2.54 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hand lamp with cable | 1 | 72609556461 | ENDED | Shop at ECS Tuning | |||||
| 08 | Interior light | 1 | 63311363598 | $15.79 | Shop at ECS Tuning | |||||
| 09 | Bulb | 15W | 1 | 63311361225 | $3.27 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 10 | Interior light | 1 | 06/1976 | 63311367353 | Shop at ECS Tuning | |||||
| 10 | Interior light | 1 | 06/1976 | 63311367353 | Shop at ECS Tuning | |||||
| 13 | Interior light | 2 | 08/1976 | 63311364442 | $29.61 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Bulb | 12V 10W | X | 08/1976 | 63217160912 | $1.96 | Shop at ECS Tuning | |||
| 15 | Reading light | 1 | 63311352517 | $112.72 | ENDED | Shop at ECS Tuning | ||||
| 16 | Bulb | 12V 10W | X | 05/1995 | 07509063575 | $1.88 | ENDED | Shop at ECS Tuning | ||
| 16 | Bulb | 12V 10W | X | 63128369224 | $1.36 | ENDED | Shop at ECS Tuning | |||
| 17 | Csk.lenshead screw | ST3,9X9,5 | 2 | 07119902216 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 18 | Installing set engine room light | 1 | 63311359310 | ENDED | Shop at ECS Tuning | |||||
| 19 | Lamp | 1 | 63311362711 | $27.29 | ENDED | Shop at ECS Tuning | ||||
| 20 | Fillister head self-tapping screw | ST4,2X16-ABW | 4 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 21 | Registration plate light | HELLA | 1 | 04/1993 | 63261372763 | Shop at ECS Tuning | ||||
| 22 | Gasket | SIDLER | 2 | 63261354034 | $4.24 | Shop at ECS Tuning | ||||
| 23 | Body nut | ST3,9-4 | 4 | 07129901640 | ENDED | Shop at ECS Tuning | ||||
| 24 | Fillister head self-tapping screw | ST3,9X13 | 4 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 25 | Control light hand brake | 1 | 08/1976 | 63311363175 | ENDED | Shop at ECS Tuning | ||||
