Interior light/reflector for BMW 7 Series E23 733i (1979)

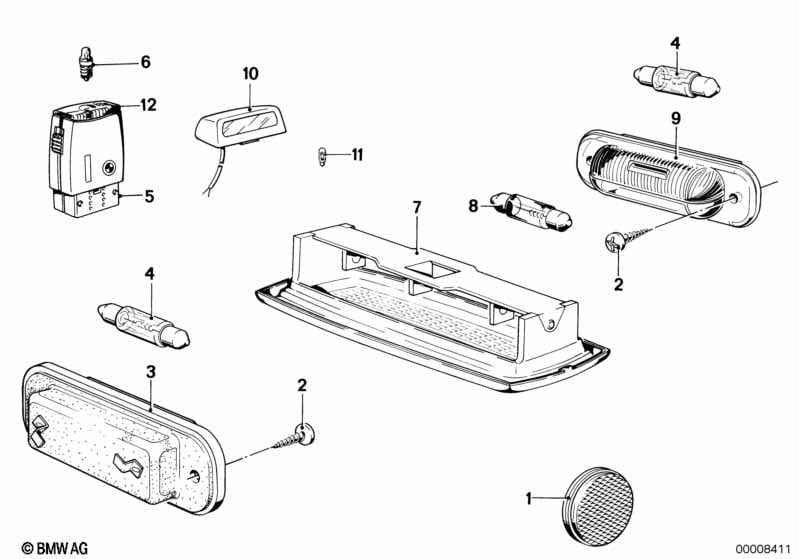

This Interior light/reflector technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fillister head self-tapping screw | ST4,2X16-ABW | 4 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Lamp | 1 | 63311362711 | $27.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Chargeable hand lamp | 10 ST. | 1 | 82119413147 | $27.25 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Bulb | 0,18A | 1 | 63171360377 | $5.14 | ENDED | Shop at ECS Tuning | |||
| 06 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 07 | Interior light | 1 | 09/1979 | 63311364442 | $29.61 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Lamp | 1 | 63311362711 | $27.29 | ENDED | Shop at ECS Tuning | ||||
| 10 | Tell-tale | 1 | 63311369290 | ENDED | Shop at ECS Tuning | |||||
| 11 | Longlife bulb | 5W | X | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 12 | Lens | 1 | 82119413148 | $2.54 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
