Interior light/reflector for BMW 7 Series E23 728i (1986)

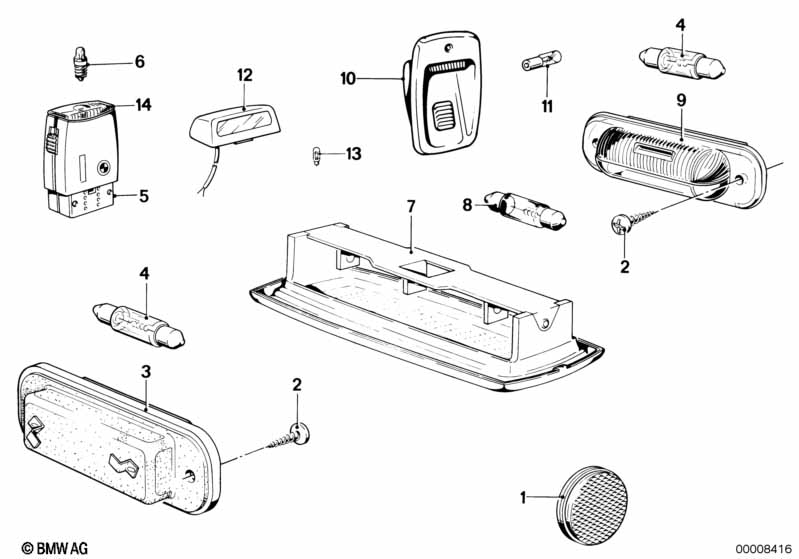

This Interior light/reflector technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reflector | 4 | 63141363100 | $8.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,2X16-ABW | 4 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Lamp | 1 | 63311362711 | $27.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Chargeable hand lamp | 10 ST. | 1 | 82119413147 | $27.25 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Bulb | 0,18A | 1 | 63171360377 | $5.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Lamp | 1 | 63311362711 | $27.29 | ENDED | Shop at ECS Tuning | ||||
| 10 | Reading light | 2 | 01/1984 | 63311374735 | $43.84 | Shop at ECS Tuning | ||||
| 11 | Bulb | 12V 10W | 2 | 01/1984 | 63311375003 | $16.90 | Shop at ECS Tuning | |||
| 12 | Tell-tale | 1 | 63311369290 | ENDED | Shop at ECS Tuning | |||||
| 13 | Longlife bulb | 5W | X | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 14 | Lens | 1 | 82119413148 | $2.54 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Interior light/reflector?
- This technical diagram illustrates the Interior light/reflector within the Lighting group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Reflector (Part #63141363100).
- Which models use the hardware listed in this Interior light/reflector?
- The hardware and components featured in the Interior light/reflector are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Reflector (63141363100) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior light/reflector assembly?
- Each item in the Interior light/reflector corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Reflector by locating its position on the schematic, which then links to the official BMW part number 63141363100 for the Lighting section.
