Various lamps for BMW 5 Series E28 525e (1987)

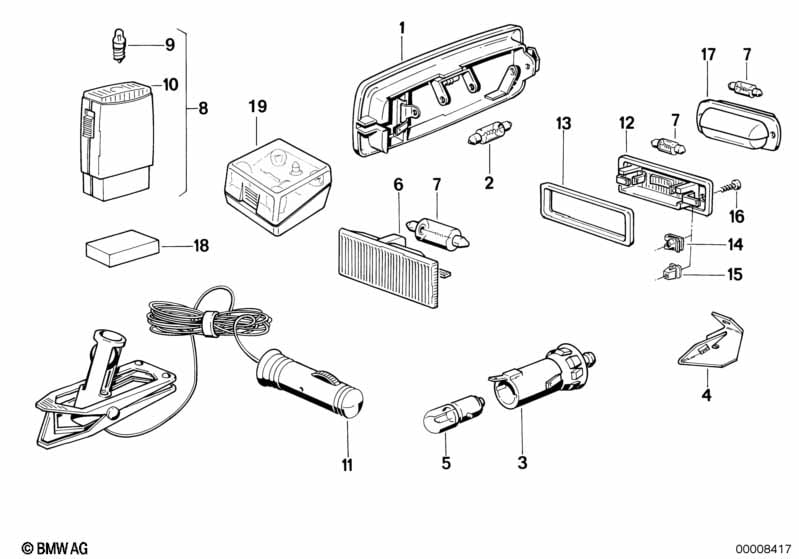

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bulb | 12V 10W | X | 02/1993 | 63217160912 | $1.96 | Shop at ECS Tuning | |||
| 02 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Switch glove box light | 1 | 63311357898 | $8.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Luggage compartment light | 1 | 63311378089 | $11.83 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Bulb | 0,18A | 1 | 63171360377 | $5.14 | ENDED | Shop at ECS Tuning | |||
| 11 | Hand lamp with cable | 1 | 72609556461 | ENDED | Shop at ECS Tuning | |||||
| 12 | Registration plate light | HELLA | 1 | 04/1993 | 63261372763 | Shop at ECS Tuning | ||||
| 13 | Gasket | SIDLER | 2 | 63261354034 | $4.24 | Shop at ECS Tuning | ||||
| 14 | Body nut | ST3,9-4 | 4 | 07129901640 | ENDED | Shop at ECS Tuning | ||||
| 15 | Expanding nut | 4 | 63261378067 | $0.25 | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapping screw | ST3,9X13 | 4 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
| 18 | Covering f hand lamp | 1 | 61131360702 | $0.43 | Shop at ECS Tuning | |||||
