Various lamps for BMW 5 Series E28 520i (1987)

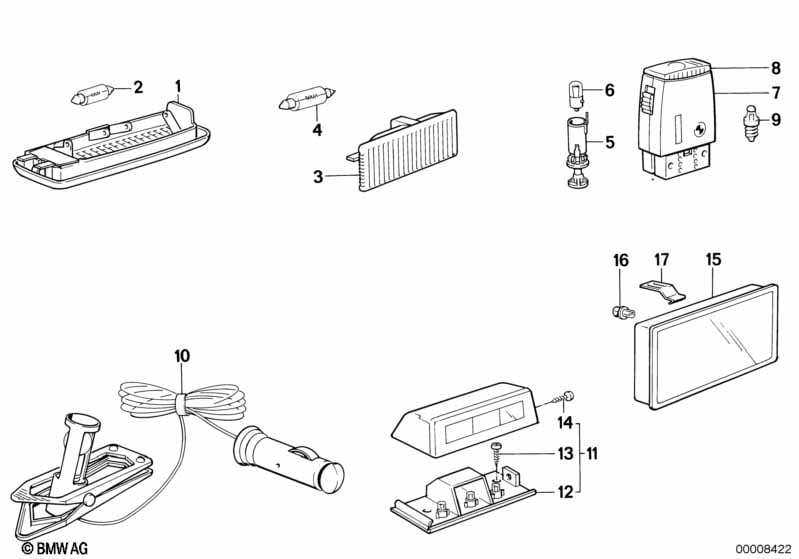

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Bulb | 12V 10W | X | 09/1982 | 02/1993 | 07119978305 | $1.40 | ENDED | Shop at ECS Tuning | |
| 02 | Bulb | 12V 10W | X | 09/1982 | 63217160912 | $1.96 | Shop at ECS Tuning | |||
| 03 | Luggage compartment light | 1 | 02/1993 | 63311378089 | $11.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 10W | X | 02/1993 | 63217160912 | $1.96 | Shop at ECS Tuning | |||
| 04 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Switch glove box light | 1 | 63311357898 | $8.00 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Chargeable hand lamp | 10 ST. | 1 | 82119413147 | $27.25 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lens | 1 | 82119413148 | $2.54 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bulb | 0,18A | 1 | 63171360377 | $5.14 | ENDED | Shop at ECS Tuning | |||
| 09 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
