Luggage compartment light for BMW 3 Series E30 320i (1992)

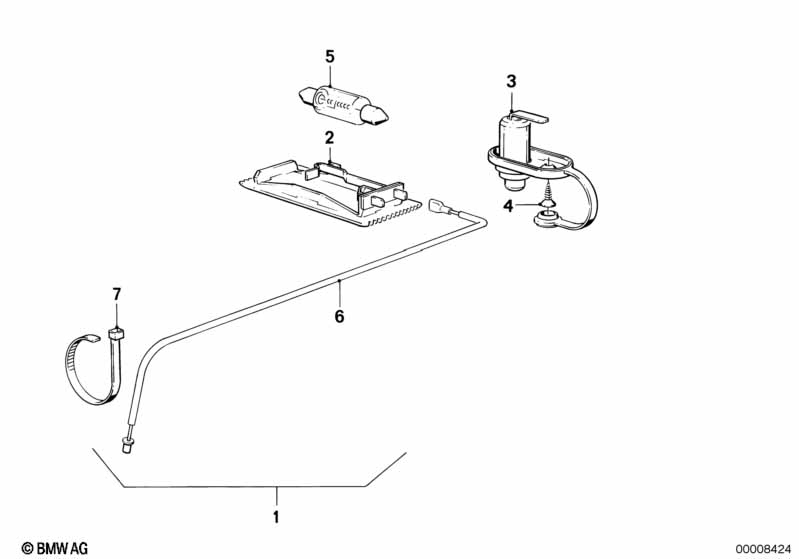

This Luggage compartment light technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Luggage compartment light | 1 | 02/1993 | 63311378089 | $11.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 10W | X | 02/1993 | 63217160912 | $1.96 | Shop at ECS Tuning | |||
| 03 | Switch | 1 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| 04 | Recessed oval head sheet-metal screw | ST3,5X9,5 | 1 | 07119902524 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Luggage compartment light?
- This technical diagram illustrates the Luggage compartment light within the Lighting group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Luggage compartment light (Part #63311378089).
- Which models use the hardware listed in this Luggage compartment light?
- The hardware and components featured in the Luggage compartment light are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Luggage compartment light (63311378089) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Luggage compartment light assembly?
- Each item in the Luggage compartment light corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Luggage compartment light by locating its position on the schematic, which then links to the official BMW part number 63311378089 for the Lighting section.
