Priority vehicle light for BMW 3 Series E30 325i (1986)

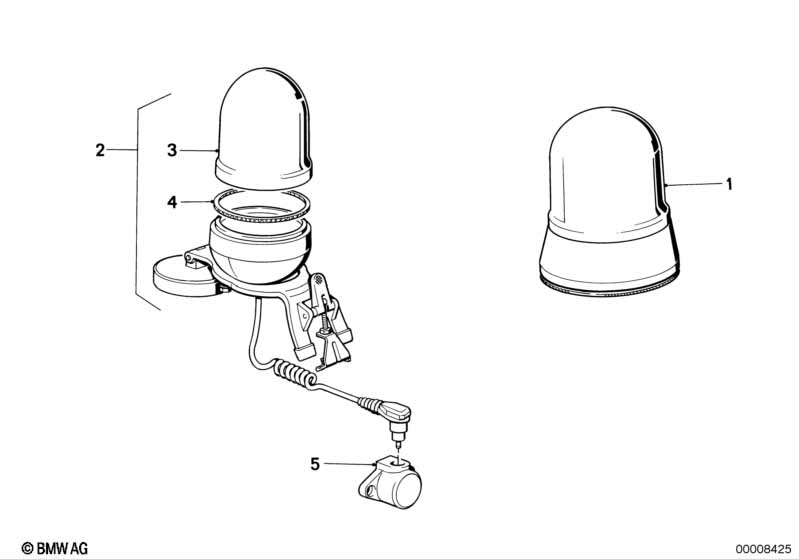

This Priority vehicle light technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Priority vehicle light, blue | D=200MM HELLA | 1 | 63171370105 | ENDED | Shop at ECS Tuning | ||||
| 02 | Priority vehicle light | BOSCH / ROT | 1 | 63171369673 | ENDED | Shop at ECS Tuning | ||||
| 02 | Priority vehicle light | HELLA / BLAU | 1 | 63171381198 | ENDED | Shop at ECS Tuning | ||||
| 02 | Priority vehicle light | HELLA / GELB | 1 | 63171381280 | ENDED | Shop at ECS Tuning | ||||
| 02 | Priority vehicle light | HELLA / ROT | 1 | 63171381281 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Light protection cap blue | HELLA | 1 | 63171243975 | ENDED | Shop at ECS Tuning | ||||
| 03 | Light protection cap yellow | HELLA | 1 | 63171243976 | ENDED | Shop at ECS Tuning | ||||
| 03 | Light protection cap red | HELLA | 1 | 63171243977 | ENDED | Shop at ECS Tuning | ||||
| 03 | Light protection cap blue | BOSCH | 1 | 63171365176 | ENDED | Shop at ECS Tuning | ||||
| 03 | Light protection cap yellow | BOSCH | 1 | 63171365177 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | 1 | 63171365178 | ENDED | Shop at ECS Tuning | |||||
| 05 | Plug-in socket | 1 | 61311373893 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
