Various lamps for BMW 5 Series E34 525i (1990)

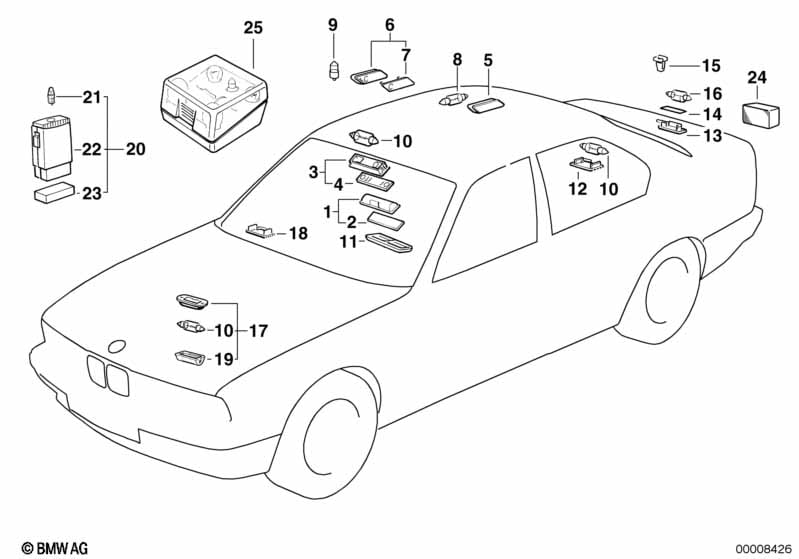

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luggage compartment light | 1 | 63318380605 | $35.82 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Lens | 1 | 63311374489 | Shop at ECS Tuning | ||||||
| 03 | Interior light and reading light | 1 | 63311384963 | $107.78 | Shop at ECS Tuning | |||||
| 05 | Interior light rear left | 1 | 09/1991 | 63311374415 | $20.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Interior light rear right | 1 | 09/1991 | 63311374416 | $20.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Left rear inter.light and reading light | SCHWARZ | 1 | 02/1989 | 09/1991 | 63312234635 | $88.72 | Shop at ECS Tuning | ||
| 06 | Right rear inter.light and reading light | SCHWARZ | 1 | 02/1989 | 09/1991 | 63312234636 | $69.75 | ENDED | Shop at ECS Tuning | |
| 06 | Left rear inter.light and reading light | BEIGE | 1 | 02/1989 | 09/1991 | 63318350069 | $88.72 | Shop at ECS Tuning | ||
| 06 | Right rear inter.light and reading light | BEIGE | 1 | 02/1989 | 09/1991 | 63318350070 | $88.72 | Shop at ECS Tuning | ||
| 06 | Left rear inter.light and reading light | GRAU | 1 | 02/1989 | 09/1991 | 63318350071 | $88.72 | Shop at ECS Tuning | ||
| 06 | Right rear inter.light and reading light | GRAU | 1 | 02/1989 | 09/1991 | 63318350072 | $82.30 | ENDED | Shop at ECS Tuning | |
| 07 | Lens left | 1 | 63311374497 | $24.65 | Shop at ECS Tuning | |||||
| 07 | Lens right | 1 | 63311374498 | $24.65 | Shop at ECS Tuning | |||||
| 08 | Bulb | 15W | 3 | 63311379249 | $3.98 | ENDED | Shop at ECS Tuning | |||
| 09 | Bulb | 12V 10W | 4 | 63311375003 | $16.90 | Shop at ECS Tuning | ||||
| 10 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Mirror lamp | GRAU | 2 | 63311382086 | $42.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Mirror lamp | BEIGE | 2 | 63311382087 | $42.23 | Shop at ECS Tuning | ||||
| 12 | Luggage compartment light | 1 | 63311378089 | $11.83 | Shop at ECS Tuning | |||||
| 13 | Registration plate light | 2 | 63261378056 | $20.42 | ENDED | Shop at ECS Tuning | ||||
| 14 | Gasket | 2 | 63261378086 | $3.50 | ENDED | Shop at ECS Tuning | ||||
| 15 | Expanding nut | 4 | 63131378066 | $0.23 | Shop at ECS Tuning | |||||
| 16 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 17 | Engine compartment light | 1 | 63311378068 | Shop at ECS Tuning | ||||||
| 19 | Lens | 1 | 63311382403 | $7.77 | Shop at ECS Tuning | |||||
| 20 | Chargeable hand lamp | 10 ST. | 1 | 82119413147 | $27.25 | ENDED, +core | Shop at ECS Tuning | |||
| 23 | Covering f hand lamp | 1 | 61131360702 | $0.43 | Shop at ECS Tuning | |||||
| 24 | Luggage compartment light/Trunk lid | 2 | 63311389613 | $11.28 | Shop at ECS Tuning | |||||
| 25 | Spare bulbs box | 1 | 63212318127 | Shop at ECS Tuning |
