Various lamps for BMW 8 Series E31 850Ci (1994)

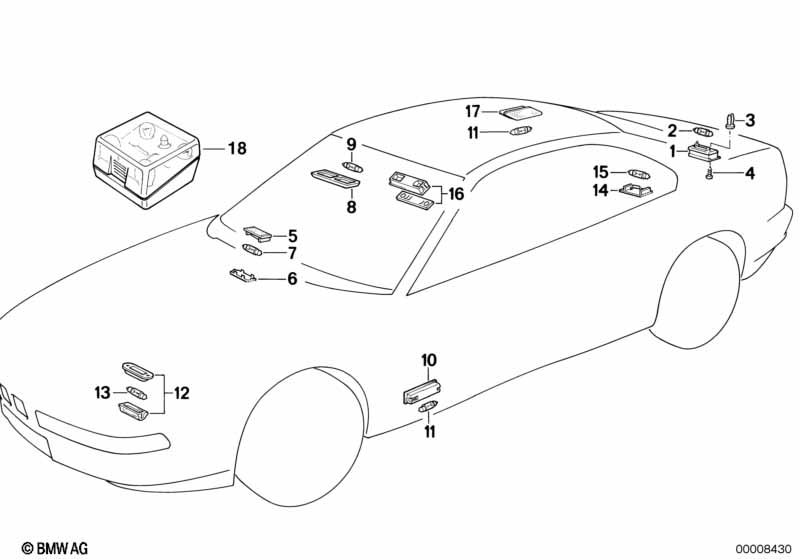

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Registration plate light | 2 | 63261383049 | $23.63 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Expanding nut | 4 | 63261392406 | $0.38 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST3,9X16 | 4 | 07119906734 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 63311392383 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Mirror lamp | SCHWARZ | 2 | 63312236821 | $32.68 | Shop at ECS Tuning | ||||
| 08 | Mirror lamp | PERGAMENT HELL | 2 | 09/1992 | 63318360281 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 08 | Mirror lamp | SILBERGRAU HELL | 2 | 09/1992 | 63318360282 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 09 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 10 | Interior light | 2 | 63311383055 | $13.92 | Shop at ECS Tuning | |||||
| 11 | Bulb | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 12 | Engine compartment light | 1 | 63318350554 | $10.52 | Shop at ECS Tuning | |||||
| 13 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 14 | Luggage compartment light | 1 | 63311378089 | $11.83 | Shop at ECS Tuning | |||||
| 15 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 16 | Interior light and reading light | 1 | 63311379412 | $106.83 | Shop at ECS Tuning | |||||
| 16 | Interior light and reading light | SCHWARZ | 1 | 63312259914 | $107.98 | +core | Shop at ECS Tuning | |||
| 17 | Interior light rear left | PERL | 1 | 63312254401 | $20.43 | Shop at ECS Tuning | ||||
| 17 | Interior light rear right | PERL | 1 | 63312254402 | $20.43 | Shop at ECS Tuning | ||||
| 17 | Interior light rear left | HELLGRAU | 1 | 63318361619 | $18.40 | ENDED | Shop at ECS Tuning | |||
| 17 | Interior light rear right | HELLGRAU | 1 | 63318361620 | $18.40 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
