Headlight for BMW 3 Series E36 318is (1999)

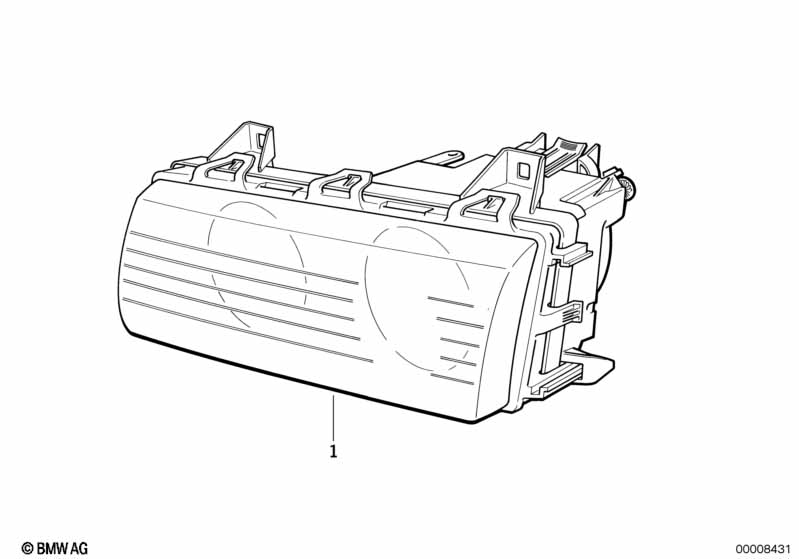

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left yellow headlight | BOSCH | 1 | 09/1993 | 63121393343 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Right yellow headlight | BOSCH | 1 | 09/1993 | 63121393344 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Head light vertical aim control | 2 | 09/1993 | 67168361460 | $118.90 | Shop at ECS Tuning | ||||
| 01 | Headlight left | BOSCH | 1 | 05/1994 | 63128363083 | $594.27 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Headlight right | BOSCH | 1 | 05/1994 | 63128363084 | $594.27 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Head light vertical aim control | 2 | 05/1994 | 67168361460 | $118.90 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Headlight left | BOSCH | 1 | 03/1996 | 63128363083 | $594.27 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Headlight right | BOSCH | 1 | 03/1996 | 63128363084 | $594.27 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Head light vertical aim control | 1 | 03/1996 | 67168361460 | $118.90 | Shop at ECS Tuning | ||||
