Turn indicator for BMW 3 Series E36 316i (1994)

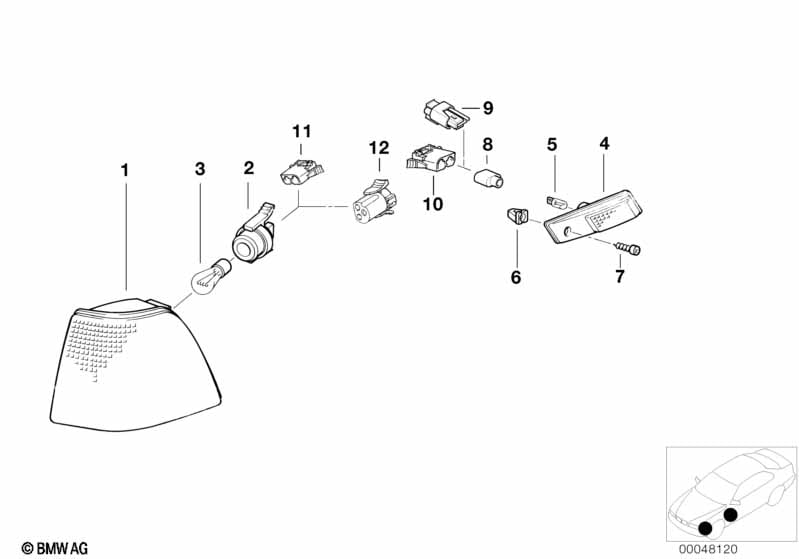

This Turn indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left turn indicator | 1 | 63138353277 | $38.87 | Shop at ECS Tuning | |||||
| 01 | Right turn indicator | 1 | 63138353278 | $38.87 | Shop at ECS Tuning | |||||
| 02 | Bulb socket | 2 | 63131384032 | $9.68 | Shop at ECS Tuning | |||||
| 03 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 04 | Additional turn indicator lamp, left | 1 | 09/1991 | 09/1996 | 63138357047 | $24.57 | Shop at ECS Tuning | |||
| 04 | Additional turn indicator lamp, right | 1 | 09/1991 | 09/1996 | 63138357048 | $24.57 | Shop at ECS Tuning | |||
| 05 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | 2 | 09/1996 | 63131378066 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST3,9X16 | 2 | 09/1996 | 07119906734 | $0.11 | Shop at ECS Tuning | |||
| 08 | Bulb socket | 2 | 09/1996 | 63141376979 | $3.85 | Shop at ECS Tuning | ||||
| 09 | Universal socket housing uncoded | 2 POL. | 2 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bulb socket | 2 | 63138360205 | $7.32 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 09 | Rep. kit for socket housing | 2 POL. | 2 | 61132359999 | Shop at ECS Tuning | |||||
| 10 | Plug housing | 2 POL. / GRAU | 2 | 61131378402 | $0.98 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb socket | 2 | 63141376979 | $3.85 | Shop at ECS Tuning | |||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 4 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
| 11 | Plug terminal black | SCHWARZ | 2 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb socket | 2 | 63131384032 | $9.68 | Shop at ECS Tuning | |||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 4 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
| 12 | Plug housing | 3 POL. | 2 | 61131378410 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bulb socket | 2 | 63131384100 | $13.38 | Shop at ECS Tuning | |||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 6 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
