Single parts, fog lights for BMW 3 Series E36 320i (1995)

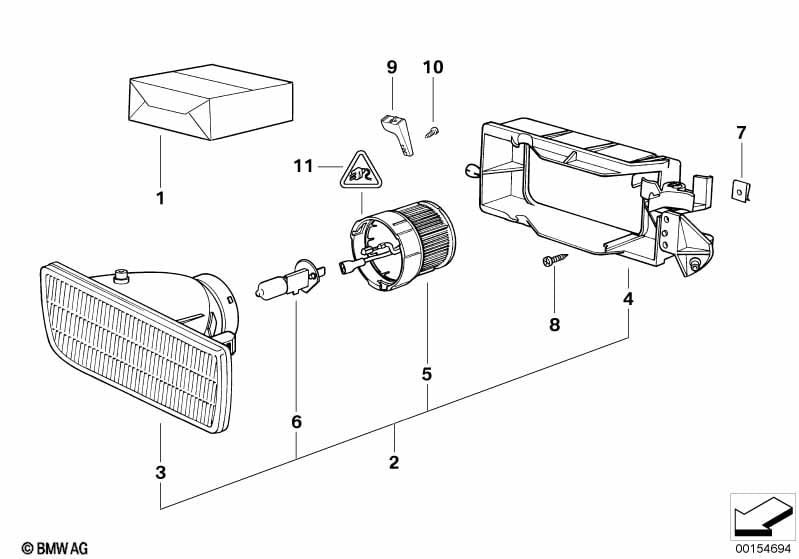

This Single parts, fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

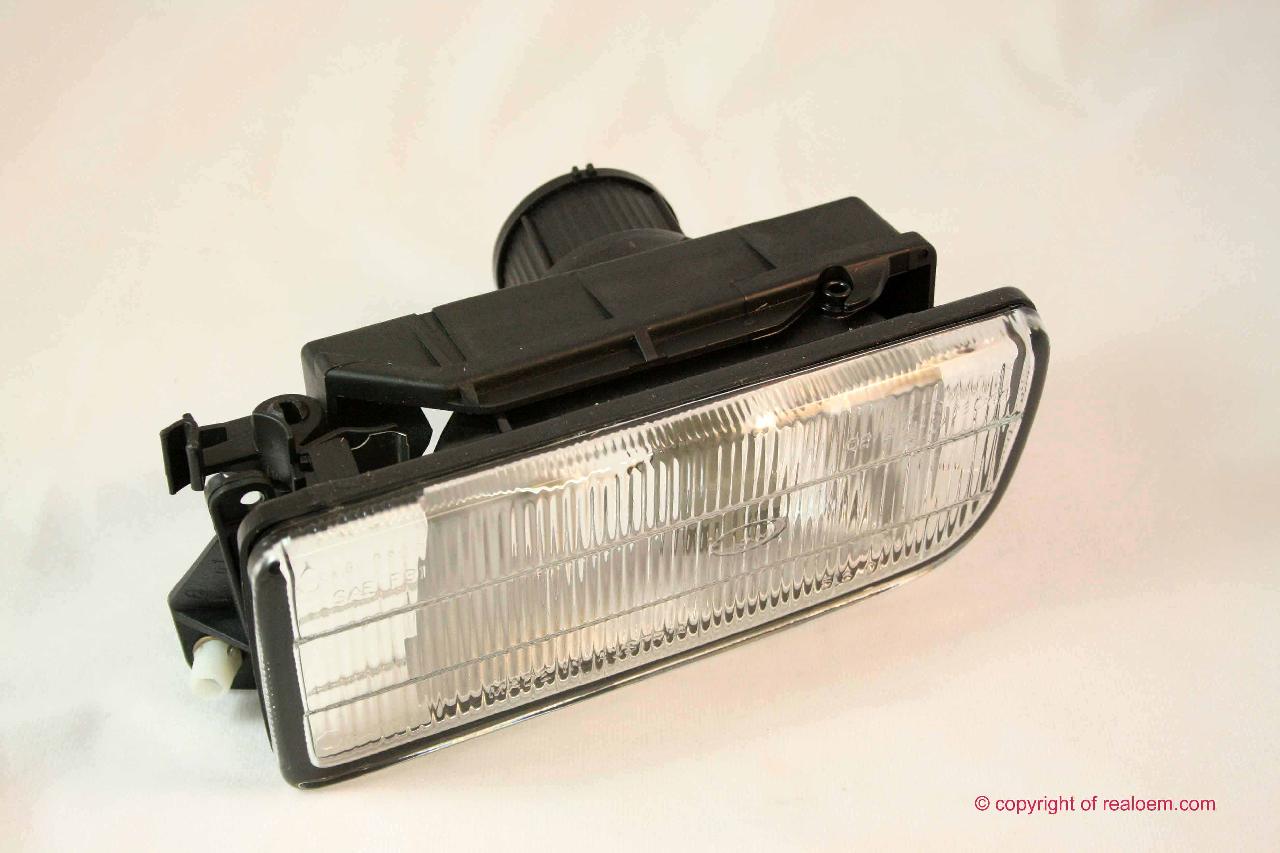

| 02 | Fog lights, left | ZKW | 1 | 63178357389 | $103.53 | Shop at ECS Tuning | ||||

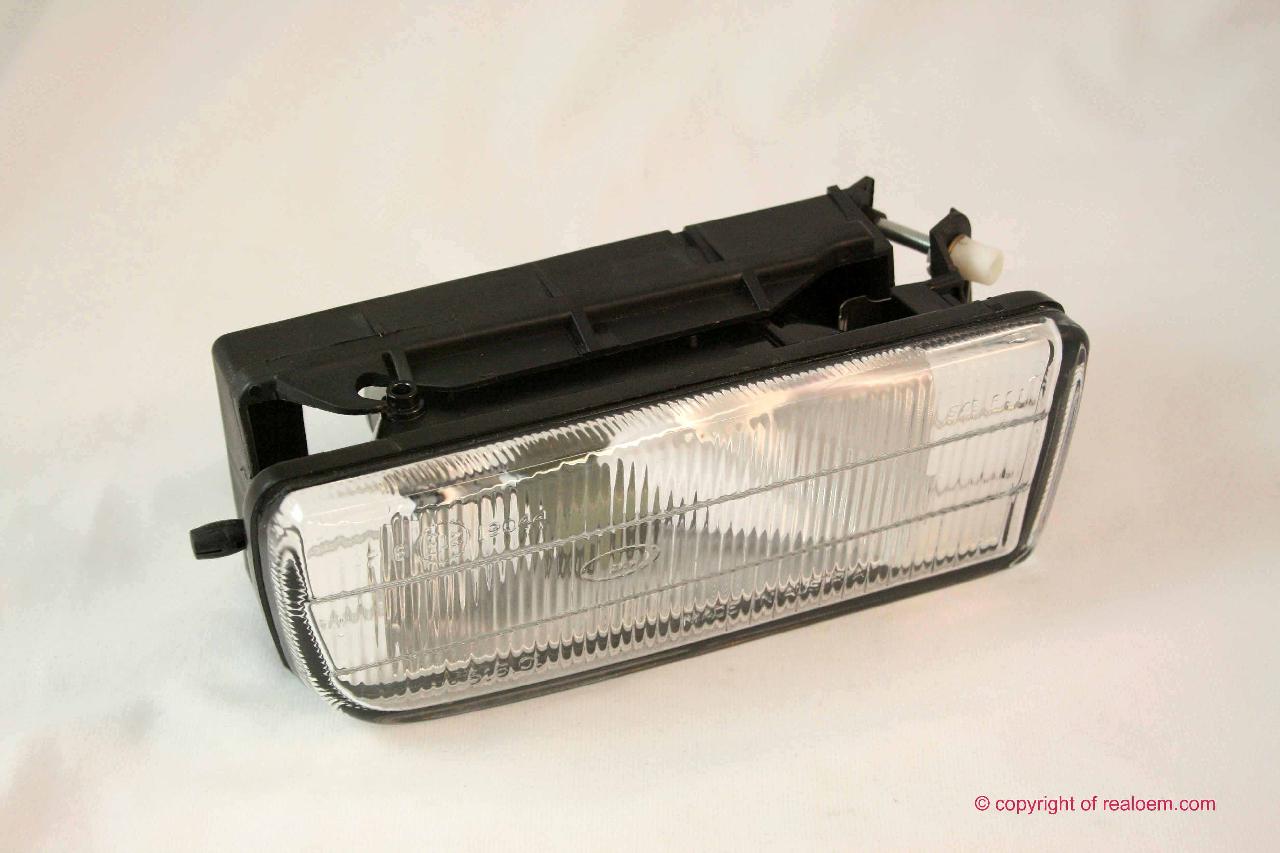

| 02 | Fog lights, right | ZKW | 1 | 63178357390 | $103.53 | Shop at ECS Tuning | ||||
| 03 | Lamp lens fog lamp left | 1 | 63178357397 | $83.13 | Shop at ECS Tuning | |||||
| 03 | Lamp lens fog lamp right | 1 | 63178357398 | $83.13 | Shop at ECS Tuning | |||||
| 04 | Supporting frame fog lamp left | 1 | 63178357393 | $30.05 | Shop at ECS Tuning | |||||
| 04 | Supporting frame fog lamp right | 1 | 63178357394 | $30.05 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 2 | 63128357401 | $37.87 | Shop at ECS Tuning | |||||
| 06 | Bulb | 12V 55W H1 | 2 | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 06 | Bulb H1 Plus | 12V 55W | 2 | 07500003923 | $8.93 | ENDED | Shop at ECS Tuning | |||
| 07 | Body nut | ST4,2-3-ZNS3 | 4 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Sheet metal screw | 4,2X13 | 4 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Left support for fog lamps | 1 | 51111977107 | $1.70 | Shop at ECS Tuning | |||||
| 09 | Right support for fog lamps | 1 | 51111977108 | $1.70 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 09 | Support left | M TECHNIC | 1 | 51112233845 | $3.08 | Shop at ECS Tuning | ||||
| 09 | Support right | M TECHNIC | 1 | 51112233846 | $3.08 | Shop at ECS Tuning | ||||
| 10 | Sheet metal screw | 4,2X13 | 2 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Plug housing | NATUR | 2 | 61131378401 | $1.40 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 2 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
