Single components for headlight Bosch for BMW 3 Series E36 M3 (1995)

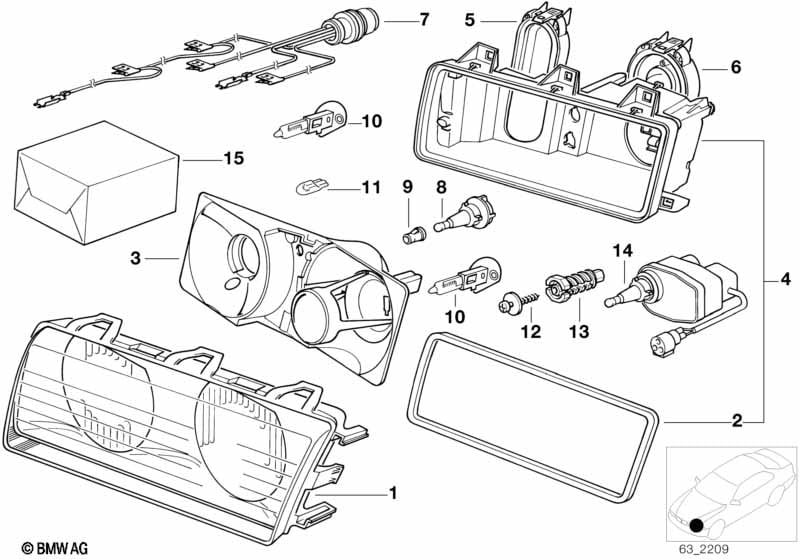

This Single components for headlight Bosch technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left yellow lamp lens | BOSCH | 1 | 63121393359 | Shop at ECS Tuning | |||||
| 01 | Right yellow lamp lens | BOSCH | 1 | 63121393360 | Shop at ECS Tuning | |||||
| 01 | Lamp lens left | 1 | 09/1994 | 63128363505 | $132.80 | Shop at ECS Tuning | ||||
| 01 | Lamp lens right | 1 | 09/1994 | 63128363506 | $132.80 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Lamp lens left | BOSCH | 1 | 05/1994 | 03/1996 | 63128363089 | +core | Shop at ECS Tuning | ||
| 01 | Lamp lens right | BOSCH | 1 | 05/1994 | 03/1996 | 63128363090 | +core | Shop at ECS Tuning | ||
| 02 | Headlight gasket | BOSCH | 2 | 63121387311 | $9.96 | Shop at ECS Tuning | ||||
| 03 | Reflector left | BOSCH | 1 | 09/1994 | 63128363501 | $239.94 | Shop at ECS Tuning | |||
| 03 | Reflector right | BOSCH | 1 | 09/1994 | 63128363502 | $239.94 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Reflector left | BOSCH | 1 | 03/1996 | 63121393355 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Reflector right | BOSCH | 1 | 03/1996 | 63121393356 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Housing, left | BOSCH | 1 | 63121387297 | $87.60 | Shop at ECS Tuning | ||||
| 04 | Housing right | BOSCH | 1 | 63121387298 | $87.60 | Shop at ECS Tuning | ||||
| 05 | Covering cap high beam | BOSCH | 2 | 63121387305 | Shop at ECS Tuning | |||||
| 06 | Lamp cover low beam | BOSCH | 2 | 63121387307 | Shop at ECS Tuning | |||||
| 07 | Wiring head light | BOSCH | 2 | 09/1994 | 63128363867 | $64.00 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 07 | Wiring head light | BOSCH | 2 | 63128353559 | $64.00 | Shop at ECS Tuning | ||||
| 08 | Bracket headlight | BOSCH | 2 | 63121387489 | $8.18 | ENDED | Shop at ECS Tuning | |||
| 09 | Intermediate piece | BOSCH | 2 | 63121387302 | $5.20 | Shop at ECS Tuning | ||||
| 10 | Bulb | 12V 55W H1 | 4 | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 10 | Bulb | H7/55W | 4 | 09/1994 | 63217160780 | $18.86 | Shop at ECS Tuning | |||
| 10 | Longlife bulb | 12V 55W H7 | 4 | 09/1994 | 63217160781 | $20.90 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 10 | Bulb | 12V 55W H1 | 4 | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 10 | Bulb H1 Plus | 12V 55W | 4 | 07500003923 | $8.93 | ENDED | Shop at ECS Tuning | |||
| 11 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 12 | Hexagon screw for plastic | X | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 13 | Adjusting screw, headlight | X | 63121387026 | $0.52 | Shop at ECS Tuning | |||||
| 14 | Head light vertical aim control | 2 | 09/1993 | 67168361460 | $118.90 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
