Single components for headlight ZKW for BMW 3 Series E36 320i (1995)

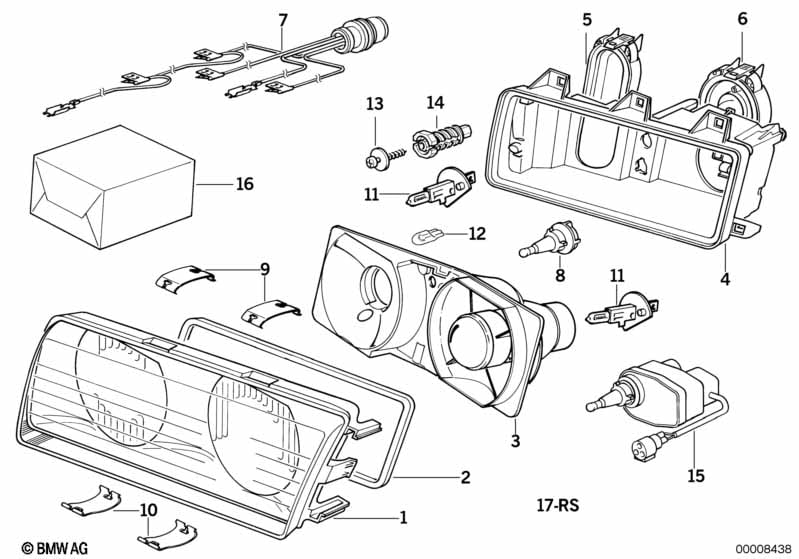

This Single components for headlight ZKW technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lamp lens left | ZKW | 1 | 09/1994 | 63128363507 | $130.53 | Shop at ECS Tuning | |||
| 01 | Lamp lens right | ZKW | 1 | 09/1994 | 63128363508 | $132.80 | Shop at ECS Tuning | |||
| 02 | Headlight gasket | ZKW | 2 | 63121393853 | $9.96 | Shop at ECS Tuning | ||||
| 03 | Reflector left | ZKW | 1 | 09/1994 | 63128363503 | Shop at ECS Tuning | ||||
| 03 | Reflector right | ZKW | 1 | 09/1994 | 63128363504 | Shop at ECS Tuning | ||||
| 04 | Housing | ZKW | 1 | 63121393851 | $71.73 | Shop at ECS Tuning | ||||
| 04 | Housing right | ZKW | 1 | 63121393852 | $71.73 | Shop at ECS Tuning | ||||
| 05 | Covering cap high beam | ZKW | 2 | 63121393845 | $11.90 | Shop at ECS Tuning | ||||
| 06 | Lamp cover low beam | ZKW | 2 | 63121393847 | Shop at ECS Tuning | |||||
| 07 | Wiring head light | ZKW | 2 | 09/1994 | 63128363866 | $64.00 | Shop at ECS Tuning | |||
| 08 | Bracket headlight | ZKW | 2 | 63121393858 | $8.18 | ENDED | Shop at ECS Tuning | |||
| 09 | Clamp | ZKW | 4 | 63128353800 | $3.85 | Shop at ECS Tuning | ||||
| 10 | Clamp | ZKW | 4 | 63121393854 | $3.68 | Shop at ECS Tuning | ||||
| 11 | Bulb | 12V 55W H1 | X | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 12 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 13 | Hexagon screw for plastic | X | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 14 | Adjusting screw, headlight | X | 63121387026 | $0.52 | Shop at ECS Tuning | |||||
| 15 | Head light vertical aim control | 2 | 09/1993 | 67168361460 | $118.90 | Shop at ECS Tuning | ||||
| 16 | Repair kit headlight | ZKW | 2 | 63128360044 | Shop at ECS Tuning |
