Third stoplamp for BMW 3 Series E36 M3 (1995)

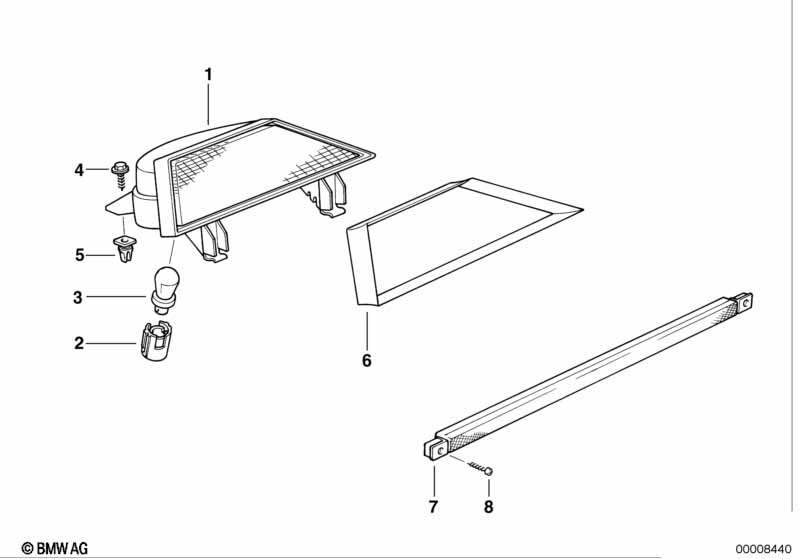

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Third stoplamp | 1 | 63258363491 | $51.93 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bulb socket | 1 | 63211379399 | $9.05 | Shop at ECS Tuning | |||||
| 03 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M5 | 1 | 12/1994 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 06 | Gasket stoplamp | 1 | 63258360221 | $7.04 | Shop at ECS Tuning | |||||
| 07 | Stoplamp rear spoiler | 1 | 63252489862 | $93.33 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST3,9X22 SW | 2 | 07119906746 | $0.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Third stoplamp?
- This technical diagram illustrates the Third stoplamp within the Lighting group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Third stoplamp (Part #63258363491).
- Which models use the hardware listed in this Third stoplamp?
- The hardware and components featured in the Third stoplamp are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Third stoplamp (63258363491) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Third stoplamp assembly?
- Each item in the Third stoplamp corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Third stoplamp by locating its position on the schematic, which then links to the official BMW part number 63258363491 for the Lighting section.
