Third stoplamp for BMW 5 Series E34 525tds (1996)

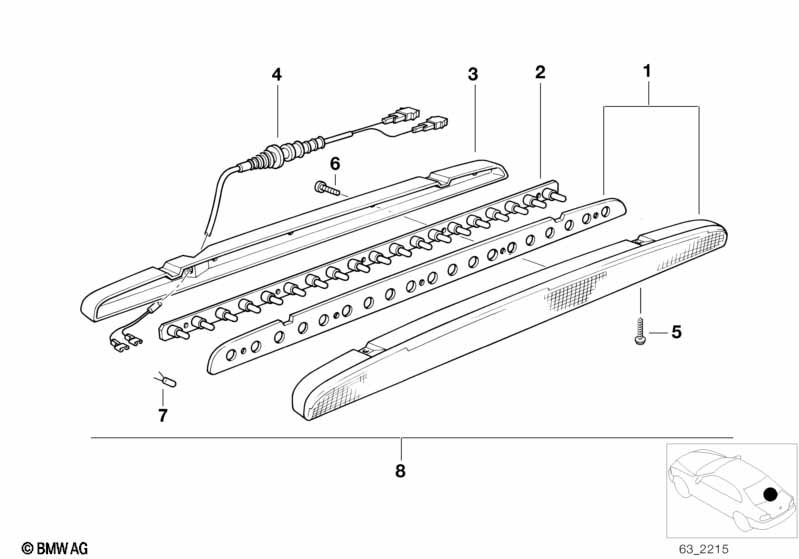

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lamp lens | 1 | 63258355032 | $71.33 | ENDED | Shop at ECS Tuning | ||||
| 02 | Printed circuit board | 1 | 09/1996 | 63258355031 | $176.45 | Shop at ECS Tuning | ||||
| 03 | Covering cap | 1 | 63258355030 | $59.02 | Shop at ECS Tuning | |||||
| 04 | Wiring set | 1 | 63258359099 | $65.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | 2 | 51718156460 | $2.63 | Shop at ECS Tuning | |||||
| 06 | Screw | NTS 3X12 | 5 | 63128359261 | $2.80 | Shop at ECS Tuning | ||||
| 07 | Bulb | X | 63218362363 | $3.98 | Shop at ECS Tuning |
