Single components for headlight for BMW 5 Series E34 530i (1995)

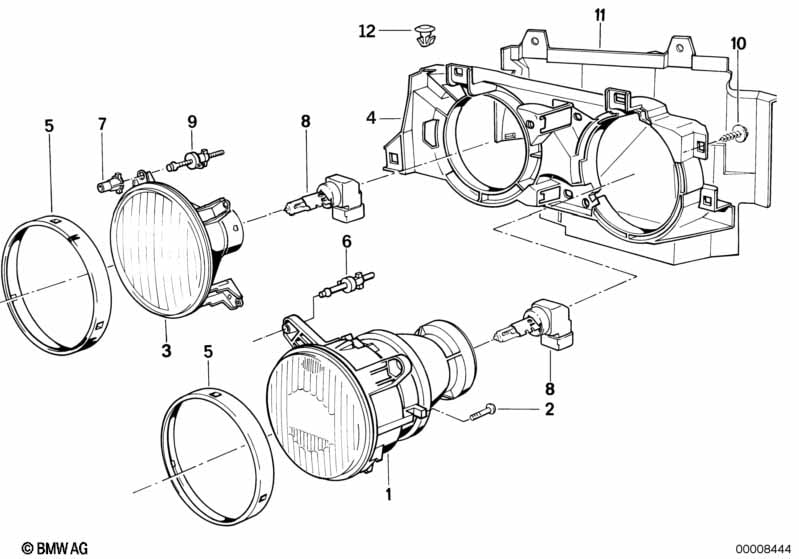

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Low beam insert left | 1 | 03/1993 | 63121382395 | $211.32 | Shop at ECS Tuning | ||||
| 01 | Low beam insert right | 1 | 03/1993 | 63121382396 | $211.32 | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | M4X22 | 6 | 03/1993 | 63121379998 | $2.40 | Shop at ECS Tuning | |||
| 03 | High beam insert left | 1 | 03/1993 | 63121382399 | $95.20 | ENDED | Shop at ECS Tuning | |||
| 03 | High beam insert right | 1 | 03/1993 | 63121382400 | $95.20 | Shop at ECS Tuning | ||||
| 04 | Supporting frame left | 1 | 03/1993 | 63121378325 | $68.42 | Shop at ECS Tuning | ||||
| 04 | Supporting frame right | 1 | 03/1993 | 63121378326 | $68.42 | Shop at ECS Tuning | ||||
| 05 | Glass holding frame | 4 | 03/1993 | 63128359493 | $45.17 | Shop at ECS Tuning | ||||
| 06 | Intermediate piece | 4 | 03/1993 | 63121394252 | $4.88 | Shop at ECS Tuning | ||||
| 07 | Black rubber bushing | 6 | 03/1993 | 63121378369 | $2.70 | Shop at ECS Tuning | ||||
| 08 | Bulb | HB3 12V 60W | 2 | 03/1993 | 63217160785 | $18.86 | Shop at ECS Tuning | |||
| 08 | Low beam and/or fog lightbulb | HB4 12V 55W | 2 | 03/1993 | 63217160786 | $18.86 | Shop at ECS Tuning | |||
| 09 | Adjusting screw | 4 | 03/1993 | 63121378368 | $7.72 | Shop at ECS Tuning | ||||
| 10 | Sheet metal screw | ST4,8X16 Z1 SW | 6 | 03/1993 | 07119904181 | $0.36 | Shop at ECS Tuning | |||
| 11 | Covering right | 1 | 51718181380 | $15.50 | Shop at ECS Tuning | |||||
| 11 | Covering upper left | 1 | 03/1993 | 51718102299 | $12.17 | Shop at ECS Tuning | ||||
| 11 | Covering lower left | 1 | 03/1993 | 51718102309 | $22.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 11 | Covering right | 1 | 51718181382 | $15.50 | Shop at ECS Tuning | |||||
| 12 | Push-button | MITTELGRAU | 4 | 03/1993 | 51491946195 | $0.42 | Shop at ECS Tuning | |||
