Hella Xenon Light for BMW 7 Series E32 730iL (1993)
This Hella Xenon Light technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left xenon low beam insert | 1 | 63128356531 | $1210.32 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right xenon low beam insert | 1 | 63128356532 | $1266.66 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder f ctrl unit of left xenon-light | 1 | 63128360639 | $83.67 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder f ctrl unit of right xenon-light | 1 | 63128360640 | $72.54 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lamp lens left | 1 | 63128356533 | Shop at ECS Tuning | ||||||
| 03 | Lamp lens right | 1 | 63128356534 | Shop at ECS Tuning | ||||||
| 04 | High beam insert left | HELLA | 1 | 63121378337 | $95.20 | Shop at ECS Tuning | ||||
| 04 | High beam insert right | HELLA | 1 | 63121378338 | $95.20 | Shop at ECS Tuning | ||||
| 05 | Supporting frame left | 1 | 63121378325 | $68.42 | Shop at ECS Tuning | |||||
| 05 | Supporting frame right | 1 | 63121378326 | $68.42 | Shop at ECS Tuning | |||||
| 06 | Glass holding frame | 4 | 63128359493 | $45.17 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | HELLA | 2 | 63121386641 | $7.52 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M4X22 | 6 | 63121379998 | $2.40 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M5X10 | 8 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5-8-ZNNIV SI | 8 | 07129904475 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Bracket, plug connection black | 2 | 61131378964 | $0.85 | Shop at ECS Tuning | |||||
| 12 | Plug-in connection bracket | 2 | 61131383758 | $1.68 | ENDED | Shop at ECS Tuning | ||||

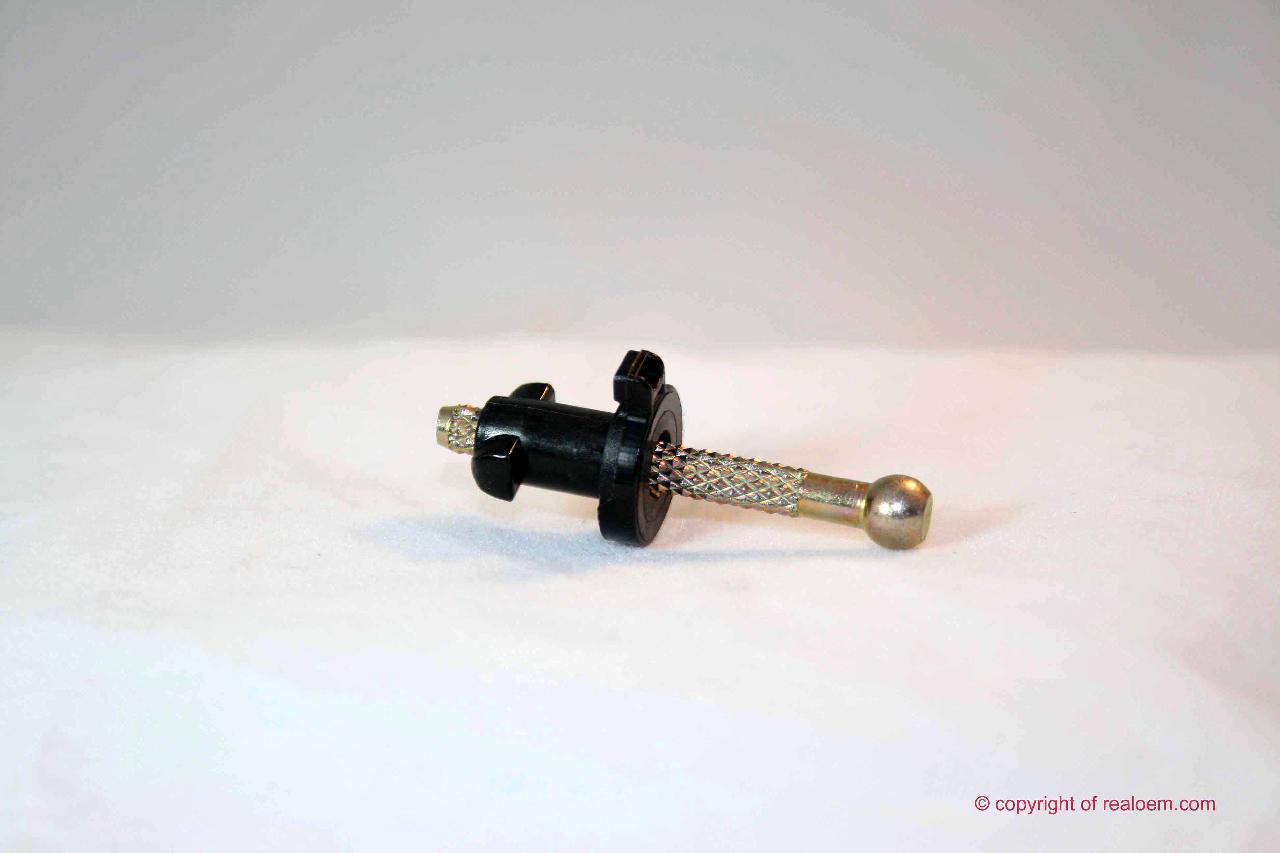

| 16 | Intermediate piece | 2 | 63121378339 | $8.93 | Shop at ECS Tuning | |||||
| 17 | Black rubber bushing | 6 | 63121378369 | $2.70 | Shop at ECS Tuning | |||||

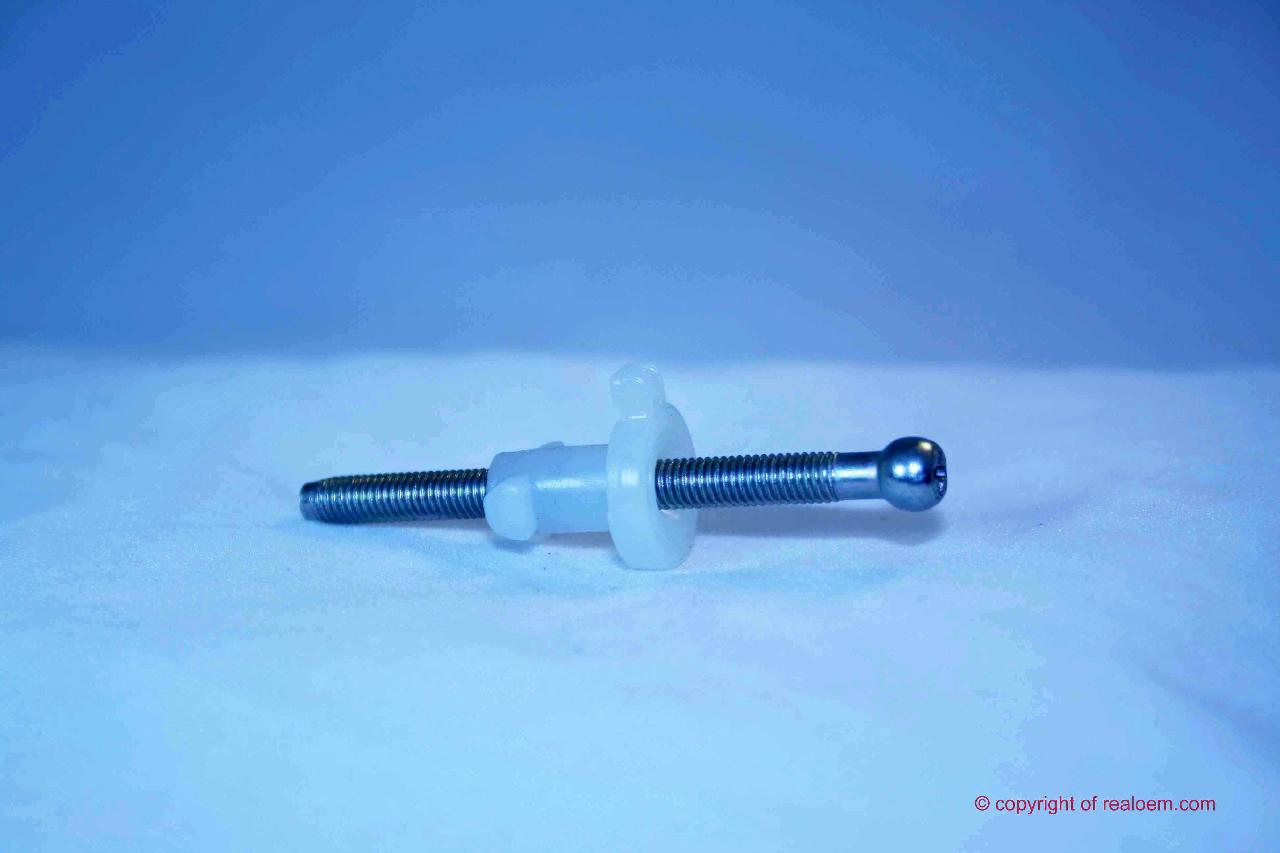

| 18 | Adjusting screw | 3 | 63121378368 | $7.72 | Shop at ECS Tuning | |||||
| 19 | Bulb socket | 2 | 63121378334 | $15.43 | Shop at ECS Tuning | |||||
| 20 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 21 | Bulb | 12V 55W H1 | X | 09/2002 | 63217160777 | $11.68 | Shop at ECS Tuning | |||
| 21 | Bulb H1 Plus | 12V 55W | X | 07500003923 | $8.93 | ENDED | Shop at ECS Tuning | |||
| 22 | Covering cap | 2 | 63121378367 | $25.97 | Shop at ECS Tuning | |||||
| 23 | Sheet metal screw | ST4,8X16 Z1 SW | 8 | 07119904181 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
