Single components for headlight for BMW 3 Series E36 318ti (1996)

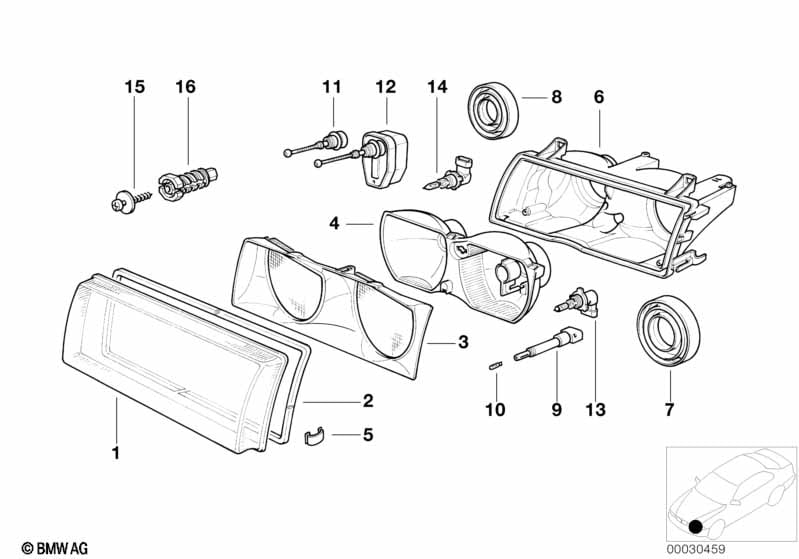

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left cover glass | 1 | 63128361099 | $74.38 | Shop at ECS Tuning | |||||
| 01 | Right cover glass | 1 | 63128361100 | $74.38 | Shop at ECS Tuning | |||||
| 02 | Headlight gasket | 2 | 63128361103 | $13.14 | Shop at ECS Tuning | |||||
| 03 | Lamp lens left | 1 | 63128361097 | $93.19 | Shop at ECS Tuning | |||||
| 03 | Lamp lens right | 1 | 63128361098 | $93.19 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Lamp lens left | 1 | 03/1996 | 63128361109 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lamp lens right | 1 | 03/1996 | 63128361110 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reflector left | 1 | 63128361095 | Shop at ECS Tuning | ||||||
| 04 | Reflector right | 1 | 63128361096 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Reflector left | 1 | 63128361105 | +core | Shop at ECS Tuning | |||||
| 04 | Reflector right | 1 | 63128361106 | +core | Shop at ECS Tuning | |||||
| 05 | Headlight clip | X | 63128361102 | Shop at ECS Tuning | ||||||
| 06 | Left headlamp housing | 1 | 63128361093 | Shop at ECS Tuning | ||||||
| 06 | Right headlamp housing | 1 | 63128361094 | Shop at ECS Tuning | ||||||
| 07 | Lamp cover low beam | 2 | 63128361101 | $8.03 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering cap high beam | 2 | 63128361961 | $23.40 | Shop at ECS Tuning | |||||
| 09 | Bulb socket | 2 | 63128361903 | $10.68 | Shop at ECS Tuning | |||||
| 10 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Bracket headlight | 2 | 63128361104 | $7.17 | Shop at ECS Tuning | |||||
| 12 | Head light vertical aim control | 2 | 67168361460 | $118.90 | Shop at ECS Tuning | |||||
| 13 | Low beam and/or fog lightbulb | HB4 12V 55W | 2 | 63217160786 | $18.86 | Shop at ECS Tuning | ||||
| 14 | Bulb | HB3 12V 60W | 2 | 63217160785 | $18.86 | Shop at ECS Tuning | ||||
| 15 | Hexagon screw for plastic | 8 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 16 | Adjusting screw, headlight | 8 | 63121387026 | $0.52 | Shop at ECS Tuning | |||||
