Rear light for BMW 3 Series E36 318ti (1996)

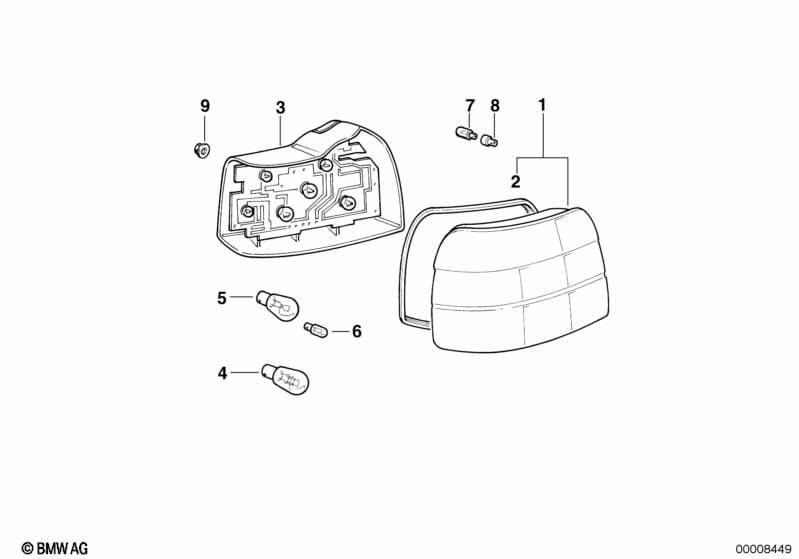

This Rear light technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left tail light with rear fog light | 1 | 63218357869 | $128.67 | Shop at ECS Tuning | |||||
| 01 | Right tail light with rear fog light | 1 | 63218357870 | $128.67 | Shop at ECS Tuning | |||||
| 01 | Left rear light, white turn indicator | 1 | 82199402924 | $113.95 | Shop at ECS Tuning | |||||
| COMPRISES AMONG OTHERS CONDUCTOR PLATE WITH COVER PLATE |
||||||||||
| 01 | Right rear light, white turn indicator | 1 | 82199402925 | $113.95 | Shop at ECS Tuning | |||||
| COMPRISES AMONG OTHERS CONDUCTOR PLATE WITH COVER PLATE |
||||||||||
| 02 | Tail light gasket | 2 | 63218360031 | $5.93 | Shop at ECS Tuning | |||||
| NOT SUITABLE FOR RIGHT REAR LIGHT, WHITE TURN INDICATOR |
||||||||||
| 03 | Right tail light cover | 1 | 63218357872 | Shop at ECS Tuning | ||||||
| NOT SUITABLE FOR LEFT REAR LIGHT, WHITE TURN INDICATOR |
||||||||||
| 03 | Left tail light cover | 1 | 63218357871 | $18.55 | Shop at ECS Tuning | |||||
| 04 | Longlife bulb | 12V 21/5W | 2 | 07119905511 | $4.88 | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 21/5W | 2 | 63217160793 | $3.92 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb, Gelb | PY21W 12V 21W | 2 | 02/1997 | 63217176025 | $5.58 | Shop at ECS Tuning | |||
| 05 | Bulb | P21W/12V/21W | 6 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | 6 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 05 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 10W | 2 | 07119905337 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Bulb socket flasher tail light | 1 | 63218353555 | $2.03 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M5 | 8 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
