Third stoplamp for BMW 7 Series E38 740i (1998)

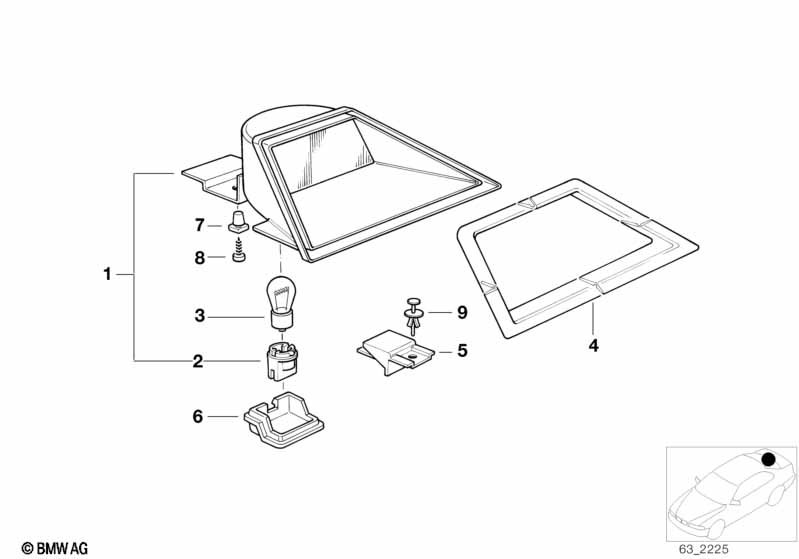

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Third stoplamp housing | 1 | 63258352886 | $92.57 | Shop at ECS Tuning | |||||
| For vehicles with Tinted glass SA761 |
=Yes |
|||||||||
| 01 | Third stoplamp housing | 1 | 63258372957 | +core | Shop at ECS Tuning | |||||
| 02 | Bulb socket | P21W | 1 | 63218355883 | $7.32 | Shop at ECS Tuning | ||||
| 03 | Bulb | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Longlife bulb | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 04 | Gasket stoplamp | 1 | 63258352887 | $13.43 | Shop at ECS Tuning | |||||
| 05 | Support f third stoplamp | 2 | 63258359509 | $1.37 | Shop at ECS Tuning | |||||
| 06 | Grommet f third stoplamp | 1 | 63258360105 | $5.33 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | ST 4.8 | 1 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Sheet metal screw | 1 | 07149150920 | $0.27 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 1 | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Third stoplamp?
- This technical diagram illustrates the Third stoplamp within the Lighting group for the 7 Series E38 740i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Third stoplamp housing (Part #63258352886).
- Which models use the hardware listed in this Third stoplamp?
- The hardware and components featured in the Third stoplamp are specific to the 7 Series E38 740i produced during 1998. These technical specifications ensure that parts like the Third stoplamp housing (63258352886) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Third stoplamp assembly?
- Each item in the Third stoplamp corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Third stoplamp housing by locating its position on the schematic, which then links to the official BMW part number 63258352886 for the Lighting section.
