Single components for headlight for BMW 7 Series E38 740i (1998)

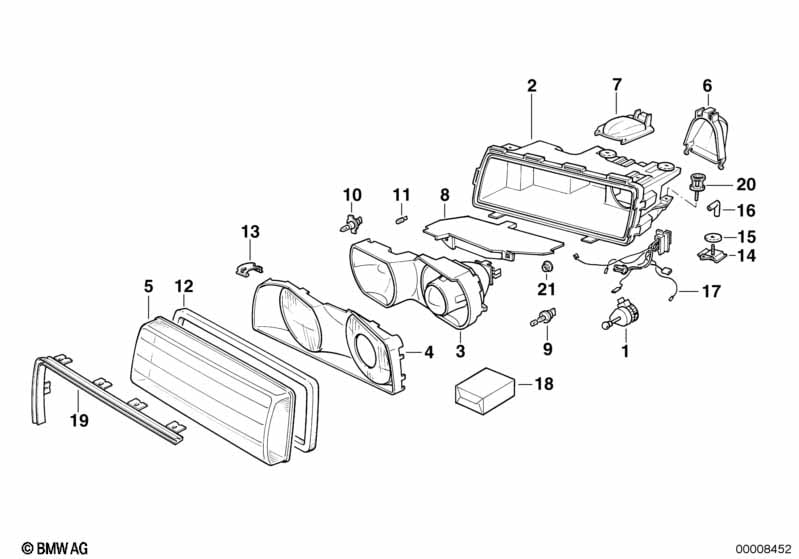

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Head light vertical aim control | 2 | 09/1998 | 67168362048 | $76.77 | Shop at ECS Tuning | ||||
| 02 | Left headlamp housing | 1 | 09/1998 | 63128361275 | Shop at ECS Tuning | |||||
| 02 | Right headlamp housing | 1 | 09/1998 | 63128361276 | Shop at ECS Tuning | |||||
| 03 | Lamp insert left | 1 | 09/1998 | 63128361291 | $248.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Lamp insert right | 1 | 09/1998 | 63128361292 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lamp insert left | 1 | 03/1996 | 09/1998 | 63128361291 | $248.87 | ENDED | Shop at ECS Tuning | ||
| 03 | Lamp insert right | 1 | 03/1996 | 09/1998 | 63128361292 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Lamp insert left | 1 | 03/1996 | 09/1998 | 63128361291 | $248.87 | ENDED | Shop at ECS Tuning | ||
| 03 | Lamp insert right | 1 | 03/1996 | 09/1998 | 63128361292 | ENDED | Shop at ECS Tuning | |||
| 04 | Left lamp lens support | 1 | 09/1998 | 63128352733 | $175.95 | +core | Shop at ECS Tuning | |||
| 04 | Right lamp lens support | 1 | 09/1998 | 63128352734 | $175.95 | +core | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 04 | Left lamp lens support | 1 | 09/1998 | 63128372101 | Shop at ECS Tuning | |||||
| 04 | Right lamp lens support | 1 | 09/1998 | 63128372102 | Shop at ECS Tuning | |||||
| 05 | Left cover glass | 1 | 09/1998 | 63128361279 | $41.57 | Shop at ECS Tuning | ||||
| 05 | Right cover glass | 1 | 09/1998 | 63128361280 | $95.25 | Shop at ECS Tuning | ||||
| 06 | Low beam cover | 2 | 09/1998 | 63128368660 | $11.90 | Shop at ECS Tuning | ||||
| 07 | High beam cover | 2 | 09/1998 | 63128361277 | $10.92 | Shop at ECS Tuning | ||||
| 08 | Bracket headlight left | 2 | 09/1998 | 63126902507 | $27.75 | Shop at ECS Tuning | ||||
| 08 | Bracket headlight right | 2 | 09/1998 | 63126902508 | $27.75 | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 55W H1 | 2 | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 09 | Bulb H1 Plus | 12V 55W | 2 | 09/1998 | 07500003923 | $8.93 | ENDED | Shop at ECS Tuning | ||
| 10 | Bulb | H7/55W | 2 | 63217160780 | $18.86 | Shop at ECS Tuning | ||||
| 10 | Longlife bulb | 12V 55W H7 | 2 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 11 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 12 | Headlight gasket | 2 | 09/1998 | 63128361290 | $10.95 | Shop at ECS Tuning | ||||
| 13 | Headlight clip | X | 09/1998 | 63128361004 | $2.77 | Shop at ECS Tuning | ||||
| 14 | Bracket headlight | 4 | 09/1998 | 63129068594 | $8.82 | ENDED | Shop at ECS Tuning | |||
| 15 | Spacer bush | SCHWARZ | 4 | 03/1995 | 09/1998 | 63128372949 | $4.62 | Shop at ECS Tuning | ||
| 15 | Spacer bush | GRAU | 4 | 03/1995 | 09/1998 | 63128372950 | $0.62 | Shop at ECS Tuning | ||
| 16 | Ventilation grommet | 1 | 09/1998 | 63128361282 | $4.75 | Shop at ECS Tuning | ||||
| 17 | Wiring head light | 2 | 09/1998 | 63128361296 | $64.00 | Shop at ECS Tuning | ||||
| 18 | Repair kit headlight | 1 | 09/1998 | 63128361323 | $6.14 | Shop at ECS Tuning | ||||
| 19 | Gasket left | 1 | 09/1998 | 63128361085 | $46.92 | Shop at ECS Tuning | ||||
| 19 | Gasket right | 1 | 09/1998 | 63128361086 | $46.92 | Shop at ECS Tuning | ||||
| 20 | Flasher securing bush | 2 | 09/1998 | 63128362531 | $5.72 | Shop at ECS Tuning | ||||
| 21 | Self-locking hex nut | M6 | 8 | 09/1998 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
